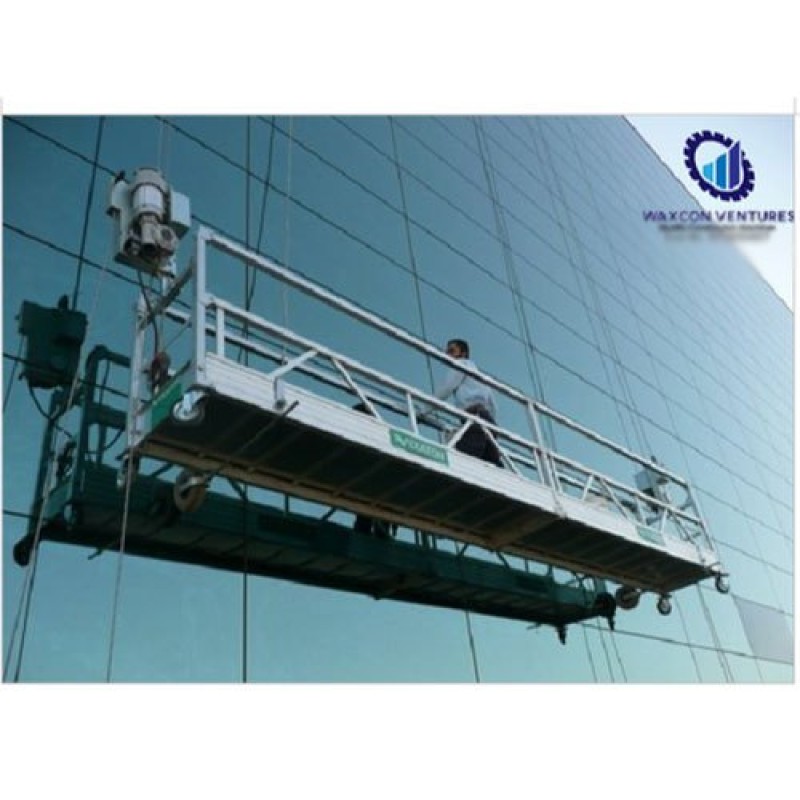

Hanging Suspended Platform

Hanging Suspended Platform

Watch Video

Product Details :

BrandWaxcon
Model Name/NumberZLP800
Material Of PlatformGalvanized
Load Capacity800 kg
Max Lifting Height150 Meter
Dimension(2.5m X 2+1m+1.5m)X0.76mX1.45m
Adjustable Height1.15 ~ 1.75 m
Motor Power1.8 Kw
Voltage415 V
Frequency50 Hz
Phase3 phase
Rotation Speed1400 r/min.


Type : ZLP800-7.5mtr

Rated Load : 800 kg

Lifting Speed : 9 m/min

Max Lifting Height : 100 Meter

Dimension of platform (L X W X H) : (2.5m X 2+1m+1.5m)X0.76mX1.45m

Suspension Mechanism Front beam overhang : 1.3 ~ 1.7 m

Adjustable Height : 1.15 ~ 1.75 m

Hoist Model : LTD 8.0

Lifting force : 8 KN

Motor Power : 1.8 KW

Voltage : 415 V, 50 HZ, 3 phase

Rotation speed : 1400 R/Min.

Brake Torque : 15.2 Nm

Safety lock Type : Tilt proof safety lock

Locking cable angel : 3-8 degree

Allowable impulsive force : 30 KN

Weight : 540 KG

Suspension platform including hoist, safety lock, electric control panel.

Suspension mechanism : 400 kg

Counterweight : 1000 kg

Whole machine weight without steel wire rope & power cable : 1940 kg

Wire rope Type : 4X31SW+FC-8.6
