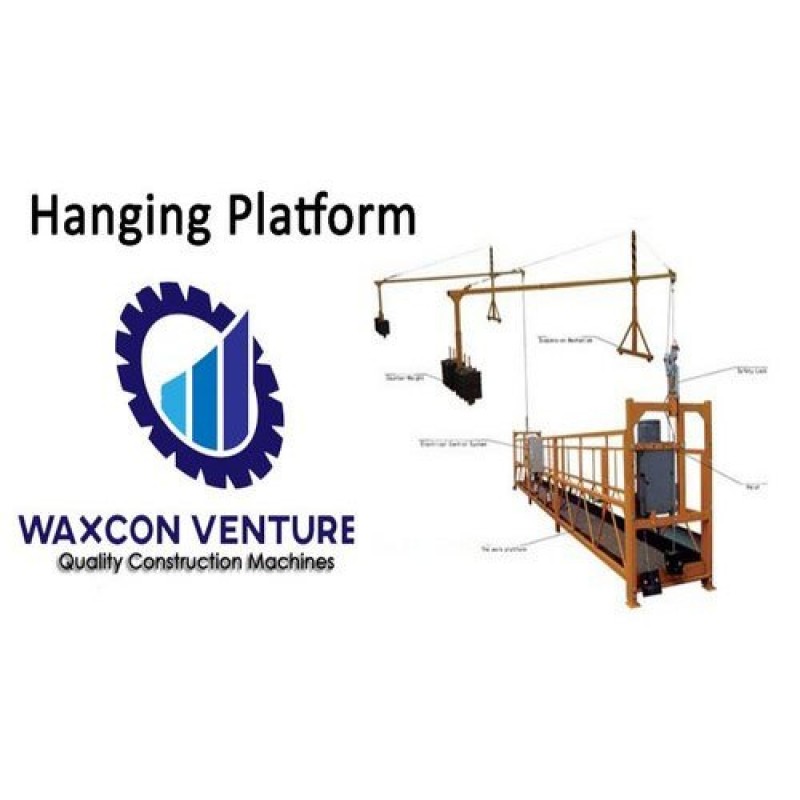

Suspended Rope Platform

Watch Video

Product Details :

A. Features of Construction Hanging Scaffolding Zlp 800 Suspended Working Platform

1. Combination of the bottom platform

2. Convenient and reliable electric control system

3. Reasonable designed structure and Attractive appearance

4. The working height can be adjusted to customer need.

5.. The voltage and frequency can be changed according to different countries conditions.

6. The material of the suspended platform can be determined by customer: Steel material (finish treatment: power coated, hot dipping) or aluminum alloy material

7. Famous brand of galvanized steel wire rope

8. The film of the ZLP Suspended platform is anti-corrosion( Steel material platform finish treatment is power coated or hot galvanized could choose; price will be different. )

B. ZLP800 Suspended Platform |Cradle |Gondola |Swing Stage |Powered

Access Platform can be widely used parapet and complicated building in different height. And we can also supply customized platform to meet different requirements from customers.

1.The length of platform can be adjusted within 1M-7.5 M.

2.The working height can be adjusted with your need.

3.The voltage can be adjusted with your need.

4.The platform materials can be adjusted with your need. 1) Aluminum alloy 2) Steel

C. Parts contains :

1. Suspended Cage: Steel or Aluminum Alloy (plastic coating or hot galvanization)

2. Suspension Mechanism: Steel (plastic coating or hot galvanization)

3. Electric hoists: LTD5, LTD6.3 or LTD8

4. Safety Lock: LSB30

5. Electric control box: Along with hoists

6. Steel wire rope: 8.3mm or 8.6mm

7. Power cable: 1.5mm²,2.5 mm², 4 mm² or 6 mm²

8. Counterweights: Cement or Cast Iron

9. Spare parts
