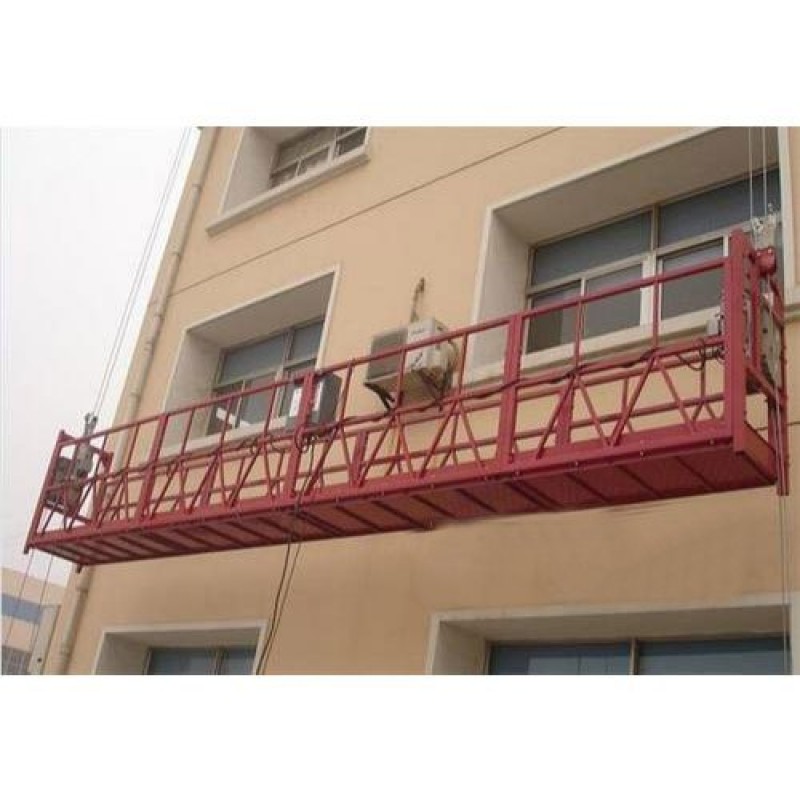

Suspended Rope Platform

Suspended Rope Platform

Product Details :

Model Name/NumberZLP800
Material Of PlatformGalvanized
Load Capacity800 Kg
Platform Length7.5 Mtr
Platform Width1 Mtr
Work SurfaceStainless Steel
AssemblyDouble Mast


Access Platform can be widely used parapet and complicated building in different height. And we can also supply customized platform to meet different requirements from customers.

1.The length of platform can be adjusted within 1M-7.5 M.

2.The working height can be adjusted with your need.

3.The voltage can be adjusted with your need.

4.The platform materials can be adjusted with your need. 1) Aluminum alloy 2) Steel


C. Parts contains:

1. Suspended Cage: Steel or Aluminum Alloy (plastic coating or hot galvanization)

2. Suspension Mechanism: Steel (plastic coating or hot galvanization)

3. Electric hoists: LTD5, LTD6.3 or LTD8

4. Safety Lock: LSB30

5. Electric control box: Along with hoists

6. Steel wire rope: 8.3mm or 8.6mm

7. Power cable: 1.5mm²,2.5 mm², 4 mm² or 6 mm²

8. Counterweights: Cement or Cast Iron

9. Spare parts
