TB 210 IR
Product Details:
| Brand | Lovibond |
TB 210 IR Highlights
- Range 0.01 - 1100 NTU
- Measurement according to EN ISO 7027
- Measurement with infrared light at an angle of 90 °
- Measurement of colored liquids

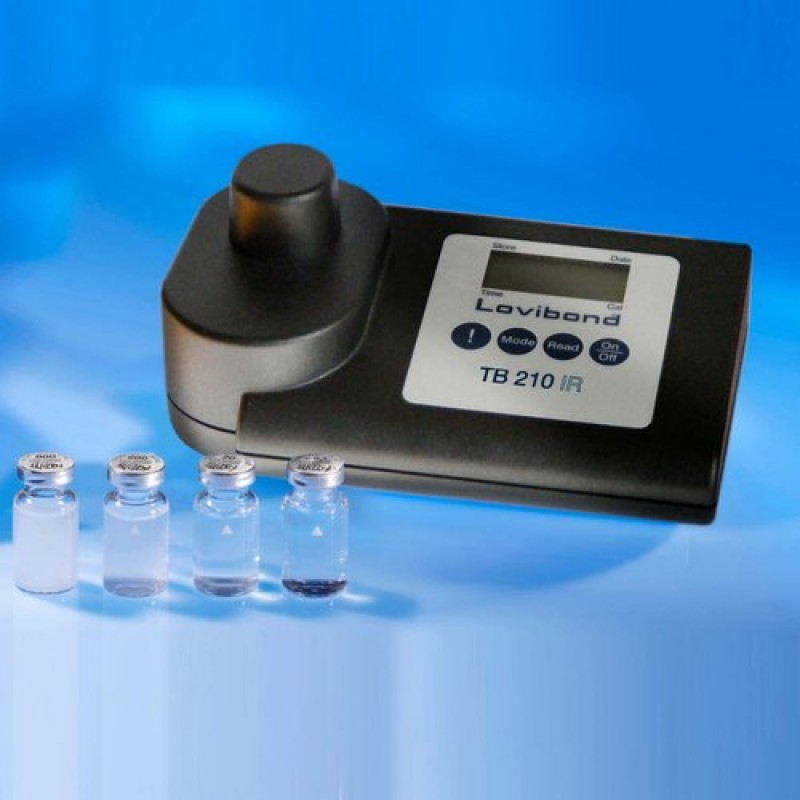

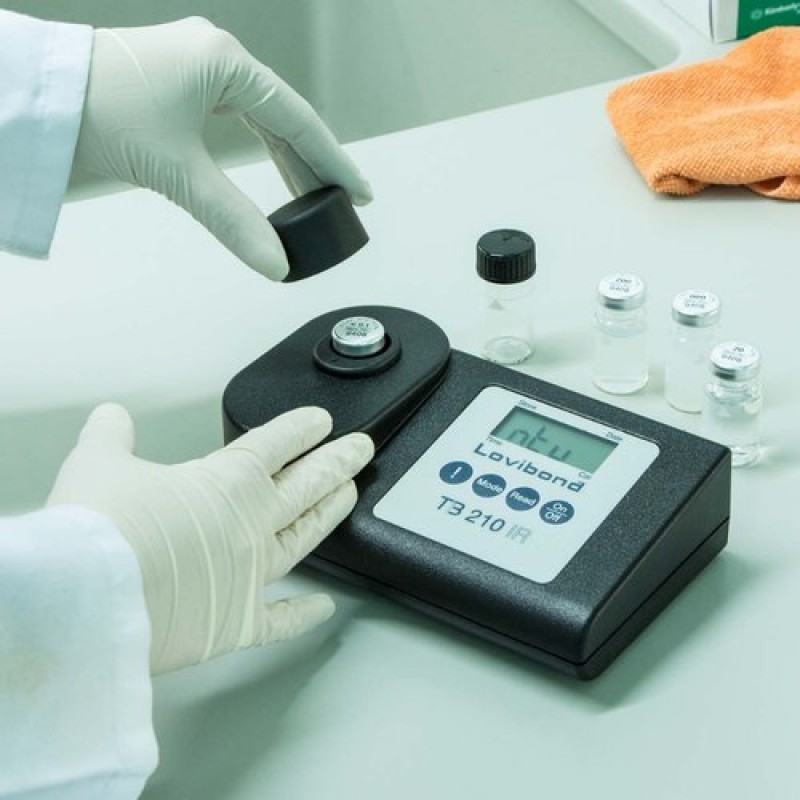

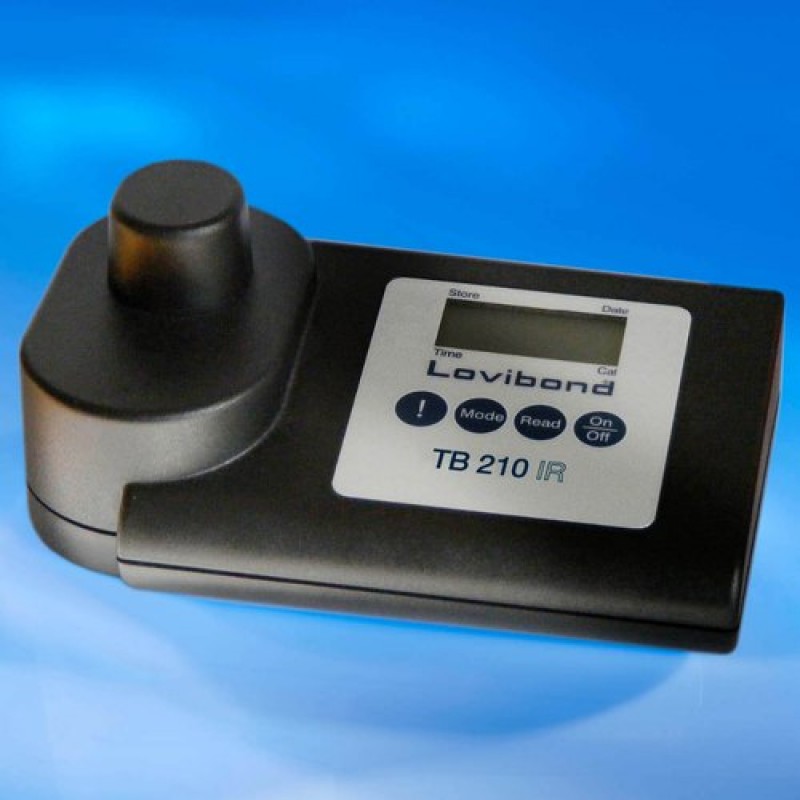

The TB 210 IR is a compact instrument for reliable and easy determination of turbidity. The scattered light is measured at an angle of 90 °.
The compact Lovibond® infrared turbidity meter TB 210 IR is designed to allow fast, precise on-site testing. The unit measures the scattered light at an angle of 90°, as stipulated in EN ISO 7027. The wide measuring range from 0.01-1100 TE/F = NTU = FNU makes the instrument suitable for various applications, ranging from drinking water to waste water. As infrared light is used for measurement purposes, the unit can be used to test both colored and colorless liquids.
The standards required for calibration of the unit are also supplied. A second adjustment mode allows alternative adjustment with user-defined turbidity standards.
Specifications :
| Light Source | IR-LED (860 nm) |
| Optics | temperature compensated LED ( λ = 860 nm) and photosensor amplifier in water proof sample chamber, infrared light |
| Accuracy | ± 2.5 % of reading, or ± 0.01 NTU, whichever is bigger, in the range of 0.01 - 500 NTU ; ± 5 % of reading in the range of 500 - 1000 NTU |
| Operation | polycarbonate membrane, splash proof |
| Display | backlit LCD |
| Suitable Vials | Round Cuvettes 24 mm |
| Internal Storage | internal ring memory for 16 data sets |
| Power Supply | 9 V-block |
| Auto – OFF | Yes |
| Measuring Principle | nephelometric (90° scattered light) |
| Measuring Range | 0,01-1100 NTU (Auto range) |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Environmental Conditions | 5 - 40 °C at 30 - 90 % relative humidity (non condensing) |
| Compliance | CE |
| Dimensions | 110 x 55 x 190 mm |
| Weight | 400 g (Basic unit) |
| Weight with Packaging | (Basic unit) |
