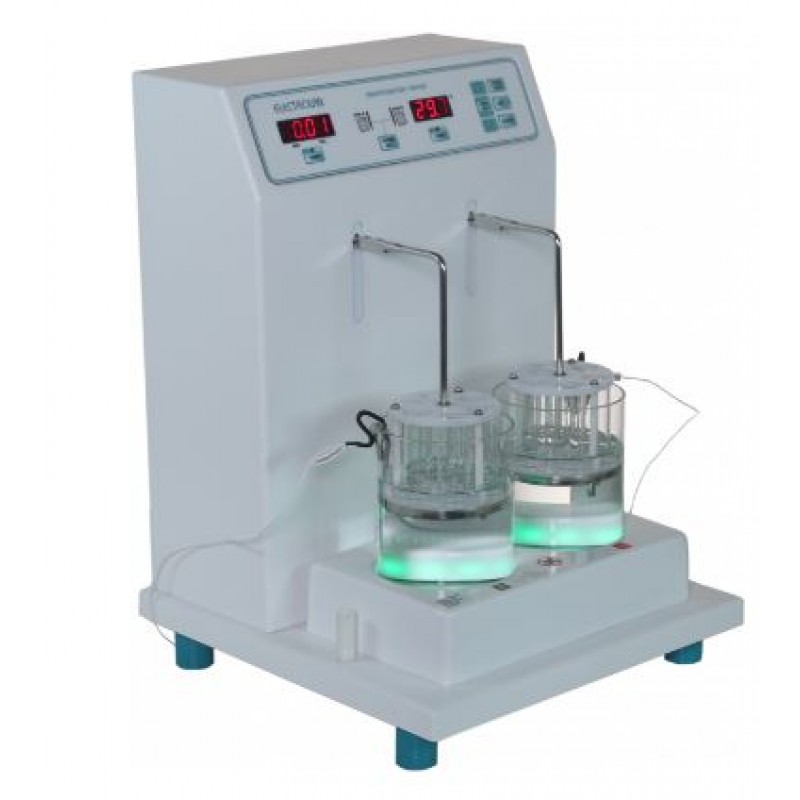

Tablet Disintegration Tester- EDI-2I
Product Details :
- Complies with USP, IP and Ph. Eur. specifications
- Supports 2 USP baskets
- Each basket is controlled by independent timer and motor
- Snap-click TM loading and a swivel free basket movement
- Green illumination for better visibility of disintegration process
- Programmable temperature controller
- Auto parking of the baskets at the top position at the end of the test
- Ergonomically designed splash proof panel
- External probe for beaker temperature validation
- Dual range timer
- Maintenance-free smooth drive
- Bathless heating (saves water, time, electricity)
- Bathless Disintegration Tester is maintenance-free
- Specially designed efficient heater plates for vessel, heats the media quickly
Specifications :
| Model | EDI-2I |
| Number of basket | 2 |
| Number of strokes | 30 + 0.5 strokes/minute |
| Stroke length | 55 mm + 2 mm |
| Number of tubes per basket | 6 |
| No. of motors | 2 |
| Motor type | DC stepper motor of 6V DC and 3.5 kg cm torque |
| Range | 20 C to 39.9 C |
| Resolution | 0.1oC |
| Display (Temp) | 3 digit LED |
| Sensor | RTD |
| No. of timers | 2 |
| Display (Timer) | 4 digit LED each |
| Power consumption | 490 VA |
| Dimensions (L x W x H) | 350 x 390 x 510 mm |
| Weight | Net : 23 kgs Gross : 32 kgs |
