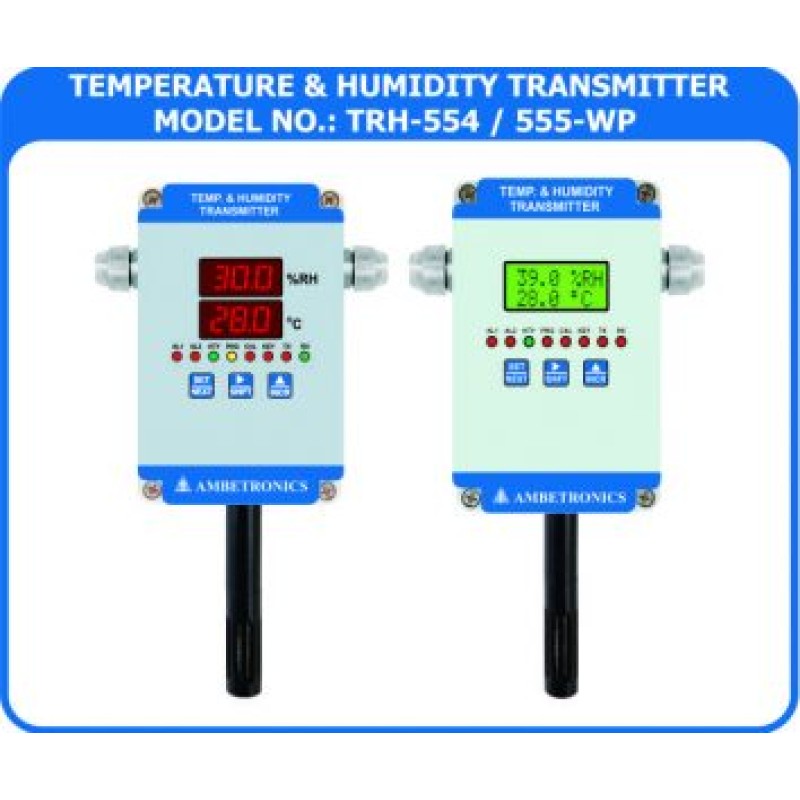

Temperature & Humidity Transmitter TRH-554-series

Description:

The TRH-554-series is a highly accurate temperature & humidity transmitter using a digital technology sensor which gives fast and reliable output. It comes with a LED digital display and is available in flame proof or weatherproof enclosures.

Salient Features:-

• Fully calibrated Digital sensor, no need of field calibration.
• Long term stable output for both Temperature and RH.
• Calculated Dew point measurement based on measurement of Temperature and Humidity.
• Wide range of operating Temperature and full scale.
• User selectable Temperature, RH & Dew point outputs.
• Digital Alphanumeric display with Auto backlit.
• Standard 4-20mA signal outputs with configurable range.
• Easy handling & programming with 3 keys.
• Can be programmed using Remote Control from 10 meters line of site distance.
• Non-intrusive programming for flameproof models using Magnetic Pen.
• Password protected programming menu.
• Optional Alarm relay contacts with two configurable Alarm levels.
• Optional RS-485 communication port with MODBUS RTU Protocol.

Applications:-

• HVAC / Buildings Controls.
• Energy Management system (EMS)
• Enthalpy control.
• Indoor air quality (IAQ)
• Clean rooms.
• Museums / Archives.
• Hospitals / Labs
• Refrigeration control.
• Pharmaceutical.
• Swimming pool
