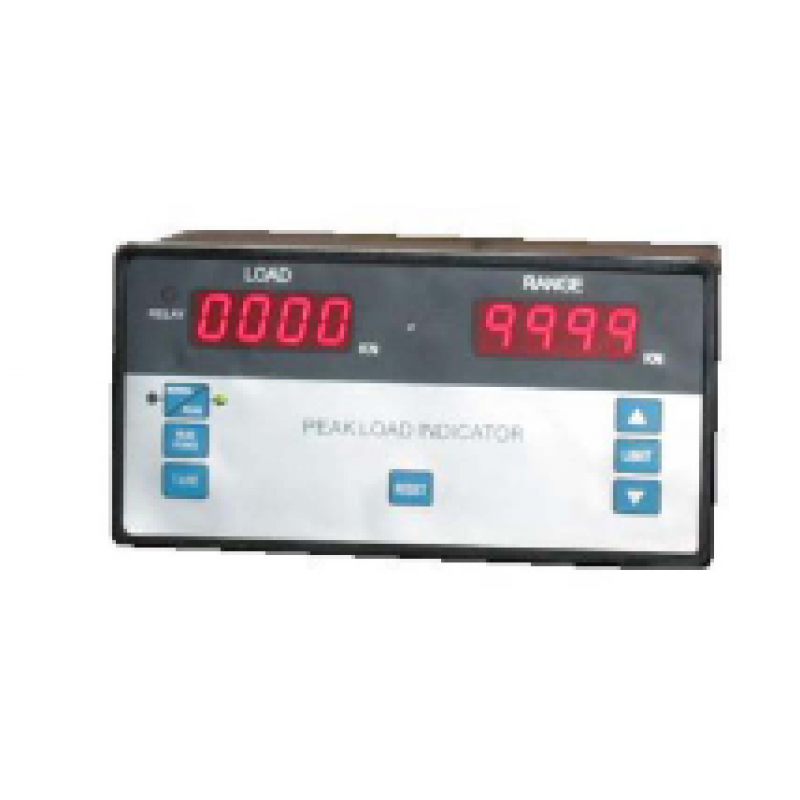

PEAK LOAD RECORDING INDICATOR
Product Details:
- Range for load indication corresponding to 4-20mA input digitally settable from front panel
- Peak/Normal mode selectable
- Up to 9 peaks can be recorded and recalled
- Buzzer annunciation at Peak
- Relay output for load limit detection with limit digitally settable
- Digital tare provided to remove initial error
- Non-volatile memory for saving configuration
- Configuration lock at rear to prevent tampering with Range
- Aesthetically designed front panel with membrane switches
Display | 4 Digit 0.56” 7 segment Red LED display for Load (KN) |
Range | 1KN to 9999 |
Accuracy | ±0.1% of Full Scale ± 1 digit |
Input | From 2 wire loop transmitter giving 4-20mA output 4-20mA input => 0 – Range |
Relay Logic | When Actual Load ≥ Set Load Limit relay switches On. |
Normal/Peak Mode | Selectable from front panel with LED indication of mode |
Peak Read | Last 9 peaks can be recalled with facility to reset memory |
Peak Detection | Peak hold is resettable from front Reset Switch or by a parallel rear external contact |
Table | Digital Tare using front panel Tare switch up to a maximum of 50KN (for removing initial offset error) |
Memory | Non-volatile EEPROM to save settings |
Table | On rear terminals to prevent unauthorized /accidental alteration of Range using front switches |
Supply | 220V AC ± 15% @ 50/60Hz |
Dimensions | Front Fascia: 96mm x 192mm Cut Out : 92mm x 188mm |
