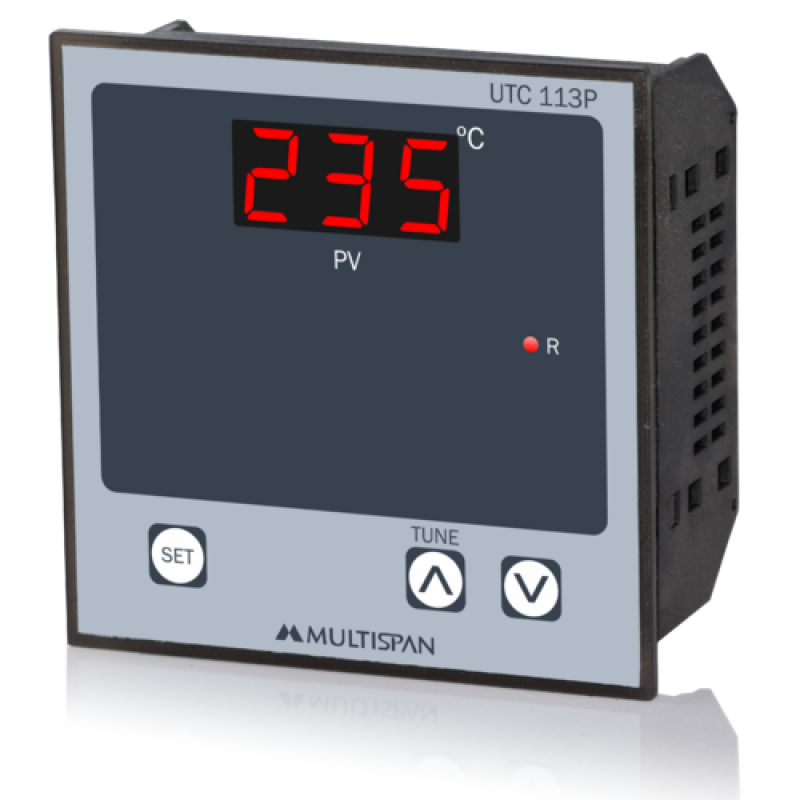

Single Display PID Economy Range Controller
Product Details :
MODEL | UTC-113P | UTC-213P | UTC-413P |
Dimension (HxWxD) mm | 96 X 96 X 50 | 72 X 72 X 85 | 48 X 48 X 95 |
Panel Cutout (mm) | 92 x 92 | 68 x 68 | 44 x 44 |
Display | Single Display: 7 segment, 3 digit, 0.56", RED LED display. | ||
Sensor | J / K / PT-100 2W/3W (Configurable) | ||
Range | J(0 to 600°C), K(0 to 999°C), PT-100 2W/3W(-99°C to 400°C) | ||
Control Output | 1 - Relay & SSR Both Parallel | ||
Relay Ratings | 1C/O, 5A, 230V AC | ||
SSR / Buzzer | 12V DC approximately | ||
Set Point | 1 - Set Point | ||
Control Action | PID / ON-OFF (Configurable) | ||
Operating Mode | HEAT / COOL Mode (Configurable) | ||
Resolution | 1°C Fix | ||
Accuracy | ±1% of FSD | ||
Power Supply | 90-270V AC/DC, 50/60 Hz, SMPS | ||
Protection | Relay turns OFF in case of sensor break | ||
Indication | "OPN" message is displayed if sensor is disconnected & LED for Relay Status Indication | ||
Enclosure Material | Plastic | ||
Operating Ambient Temp | 0°C - 55°C | ||
Relative Humidity | Upto 95 % RH Non Condensing |
