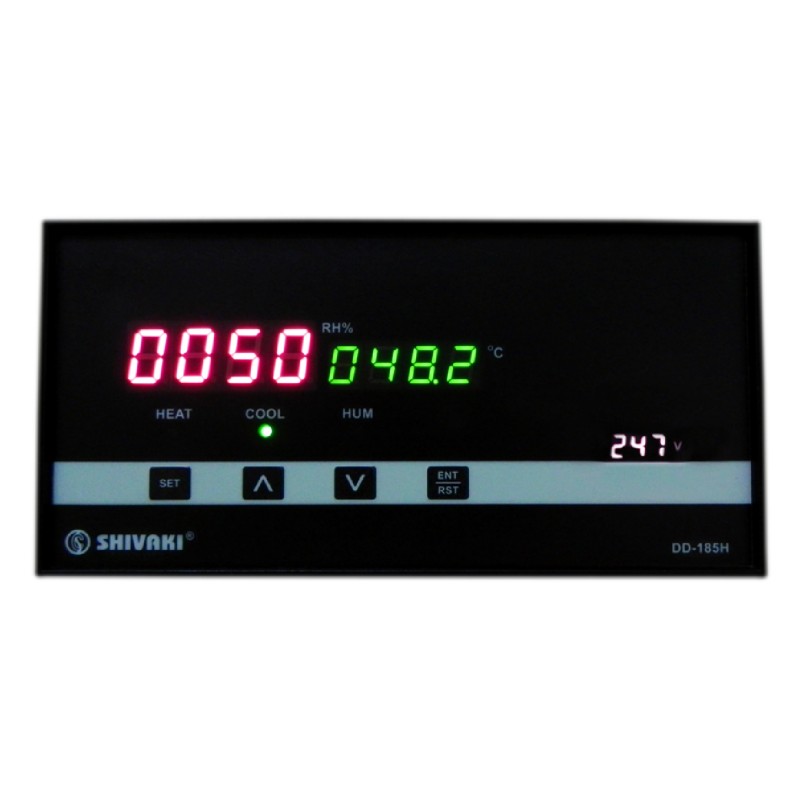

TEMP.+HUMIDITY CONTROLLER WITH VOLT METER

Overview / Features :

Size Available In

• 90 X 185 MM

Inbuilt Volt Meter

Optional:-

• Timer
• HI/Low Alarm
• Water Cut Off.

SPECIFICATION :

O) Microcontroller based, Double display

O) Power Supply 220VAC

O) Input 3.3VDC or RTD

O) Control: PID or On/Off

O) Range : RTD -50.0 To 400.0 C

                  Humidity 0 To 100%

O) Temperature As per range adjustable in set mode.

O) Humidity As per range adjustable in set mode.

O) Ct 1 To 60 for SSR output & 10 To 120 second for Relay output adjustable

O) Auto tuning require for pb, It & dt value

O) Hysteresis 0.2 or 2 To 25.0 C or 25 C adjustable as per range selection for RTD

O) Delay 0 To 250 second adjustable for cooling control

O) Err -display if Sensor break ,open & reverse.

O) Relay trip if sensor breaks, connection open or connection reverse.

O) Calibration Error correction by front key switch (No preset setting)
