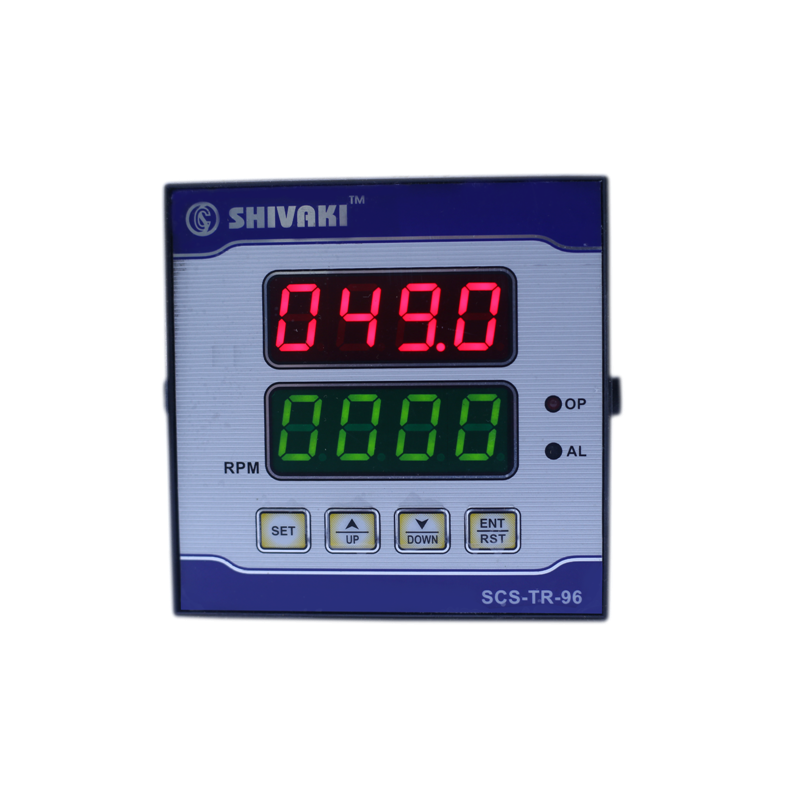

TEMPERATURE CONTROLLER WITH RPM INDICATION

Overview / Features :

Size: 96 X 96 MM

Temperature Controller With RPM Indication.

Optional:-

High / Low Alarm

SPECIFICATION :

O) Microcontroller based Double Display

O) Power Supply SMPS 110VAC To 220VAC

O) Input: J, K or RTD ( TEMP.)

O) Input ( RPM ) Proximity Switch.

O) Output 1: Relay Contact/SSR

O) Alarm Relay Contact or Buzzer - Optional

O) High/Low Alarm - Optional

O) Control: PID or ON/Off

O) Range: J Type 0 To 750C

                  K Type 0 To 1200C

             RTD Type 0 To 400C

           RTD.1 Type -50.0 To 400.0C

O) FOR RPM 0 To 9999 RPM

O) Temperature As per range adjustable in set mode

O) Alarm 0-0 To 25.0 or 0 To 250 as per range adjustable

O) Ct 1 To 60 for SSR Output & 10 To 120 second for Relay output adjustable

O) Auto tuning require for pb, lt & dt value

O) Hysteresis 0.2 or 2 To 25.0 C or 25 C adjustable as per range selection for RTD

O) Hysteresis 2 To 250 C adjustable as per range selection for J & K Type

O) Delay 0 To 250 second adjustable for cooling control

O) OPEn display if Sensor break & -rEV display if connections reverse

O) Relay trip if sensor breaks, connection open or connection reverse

O) Calibration Error correction by front key switch (No preset setting)
