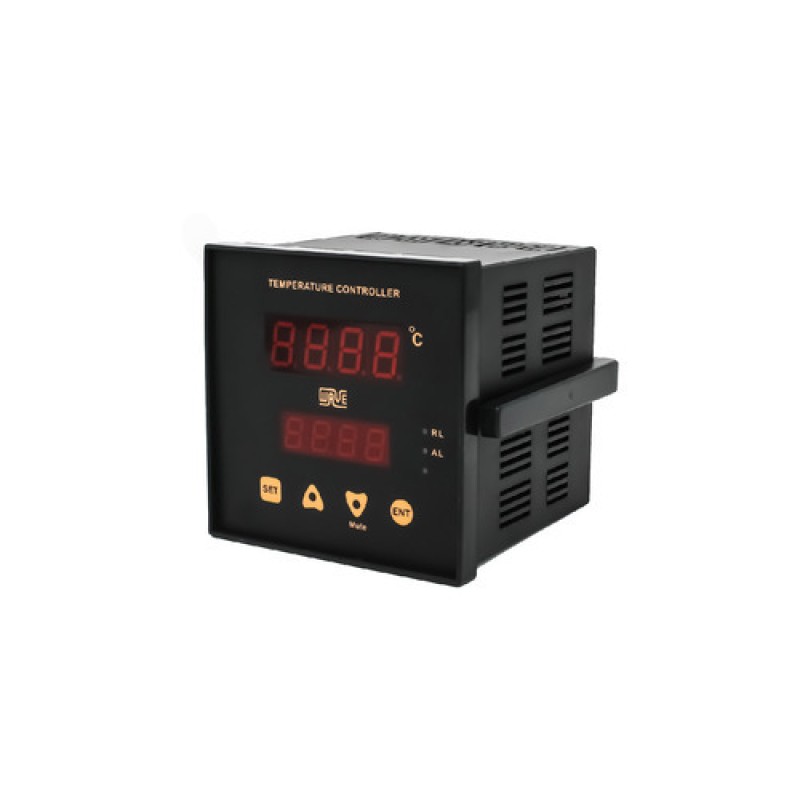

Temperature Controller - Cooling

Product Details :

• Size 48(w)x48(h)x85(d)mm (Model :- WTC-1301-C)
• Size 72(w)x72(h)x45(d)mm (Model :- WTC-1101-C)
• Size 96(w)x48(h)x65(d)mm (Model :- WTC-1001-C)
• Size 96(w)x96(h)x65(d)mm (Model :- WTC-1201-C)
• Microcontroller based
• Four digits, Single display
• Supply 100-260 VA
• Input : PT100 RTD
• Output: 1.Cooling Relay contact or SSR, 2.Alarm Relay contact or Buzzer
• Control action: Cooling control -On/Off
• Range: -99.0 to 100.0ºC
• Indication accuracy of 0.5% of full scale
• Cooling Temperature As per range adjustable in set mode.
• Alarm setting -25.0 to 25.0ºC adjustable above and below set value.
• Cooling Hysteresis 0.2 to 25.0ºC adjustable
• Delay 0 to 10 Minute settable
• Open display if Sensor break
• Relay trip if sensor breaks or connection open
• Calibration Error correction by a front key switch (No preset setting)
• Configure link at a Back terminal to avoid unauthentic entry.
• Defrost cycle start temperature settable
• Defrost On time 0 to 250 Minute & Off time 0 to 9999 Minute settable
• Defrosting on indication by dp blinking
• Defrost time countdown indication by enter key
• Alarm output optional
• Alarm Mute by decrement key.
• Manual defrost on by increment key
• Enclosure material: ABS Or Polycarbonate
• Operating Ambient Temp:0ºC to 55ºC.

Additional Information:

• Item Code: WTC-1XXX-C
