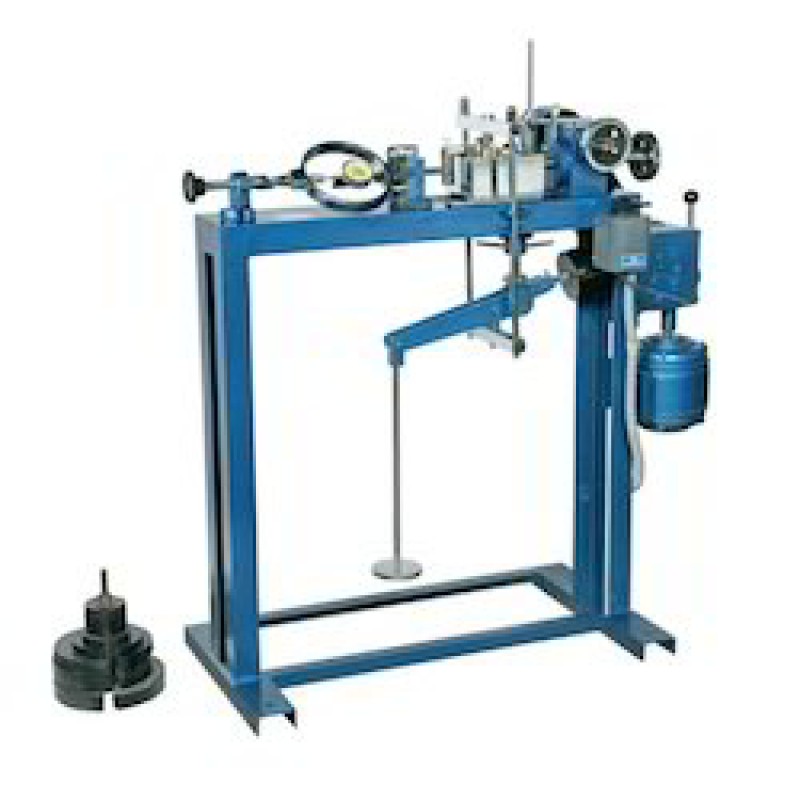

Direct Shear Apparatus
Product Details :
Material | MS |
Display | Analog |
Automation Grade | Manual |
Capacity | 8 kg/cm2 |
Country of Origin | Made in India |
Specimen Size | 60 x 60 x 25 mm |
Feature | Comes With 12 Speed |
Leveraging on the hard work of our team members, we are efficiently presenting a superior quality Direct Shear Apparatus that is designed as per IS: 2720 (Part XIII). Our Direct Shear Apparatus comprises Loading Unit with V-strips on which shear box housing rests, fixtures for proving ring, loading yoke with direct and lever system for applying normal load to the capacity of manually operated lead screw for application of shear stress and brackets for holding consolidation and strain dial gauges.
Models available:
- Hand Operated
- Motorized with single speed
- Motorized with 12 speeds
