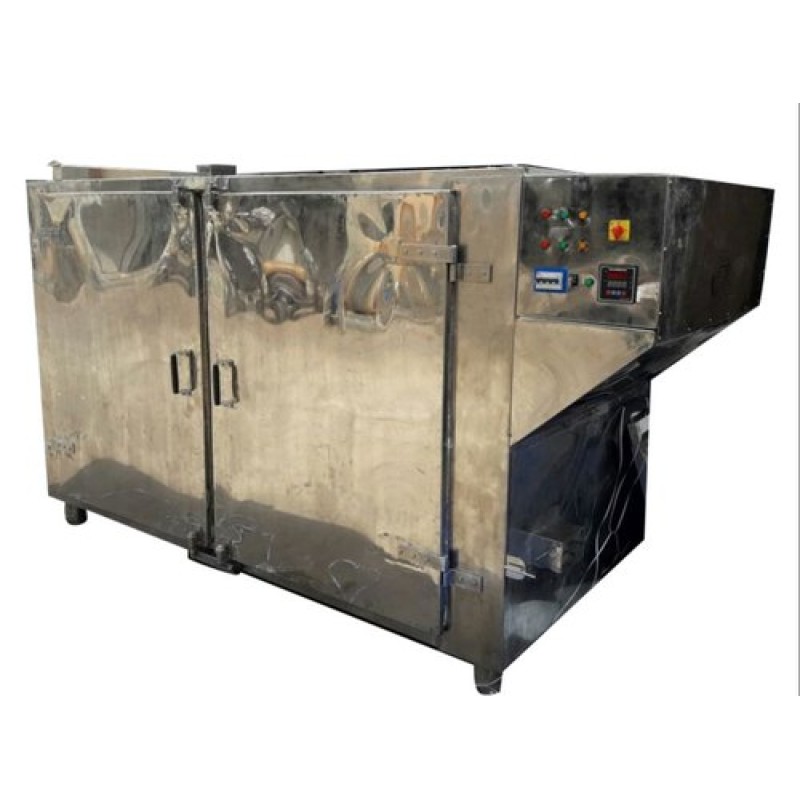

Tray Dryer
Product Details :
Material | Stainless Steel |
Heating Media | Electric |
Exterior | Heavy gauge M.S. with powder coated or S.S.304 in GMP model |
Chamber | Double Walled |
Damper | Adjustable exhaust Damper with an arrangement for pre-Filtration, in the air inlet |
Buzzer | Audio Indication |
Temp.Control | Microprocessor Based |
Documentation | IQ/OQ/PQ/DQ Documentation |
Applications:
Air tray dryers are the most commonly used drying system in Pharmaceutical, Chemicals, Dyestuff, Textile, Food, Automobile & many other industries.
It also used for drying chilies, spices, papads, potato chips, onions, fish, garlic, grapes, cashew nuts, confectionery, macaroni, wood , powders, granules, plastic granules etc. Heating is either by electric or steam or both combined. Various models are listed in this leaflet to suit customer requirements. Custom-built models can be quoted on request
Working Principle OF Tray Dryers:
The tray dryers are heated by means of electrical, steam and oil as fired burners. The dryer cabinet is designed in such a way that air inside the dryer has minimum resistance at all the corners of the dryer.
Model. | NIC100-12T | NIC100-24T | NIC100-48T | NIC100-96T |
---|---|---|---|---|
Loading Cap. | 12Trays | 24Trays | 48Trays | 96Trays |
No. Doors | One | One | Two | Two |
No. Blowers | One | One | Two | Two |
No. Motors/H.P. | 1/0.25 | 1/0.05 | 1/1 | 2/1 |
Power Supply | 3 Phase415Volts | 3Phase415Volts | 3Phase415Volts | 3Phase415Volts |
Heaters200°C/300°C | 3kw/4.5kw | 6kw/9kw | 12kw/15kw/ | 15kw/21kw |
Dimension of Trays | 800mm x 400mm x 30mm | 800mm x 400mm x 30mm | 800mm x 400mm x 30mm | 800mm x 400mm x 30mm |
Overall Dimensions D x H x W(approx.) | 1130 x 1180 x 620mm. | 1130 x 1180 x 1210mm. | 1130 x 1180 x 2520mm. |
