Iron Weighbridge

Iron Weighbridge

Product Details :

TypeElectronic
BrandMANSI
Size7.5 M X 3M
MaterialMild Steel
Weighing Capacity50 Ton
Load CapacityUp To 200 Tonnes

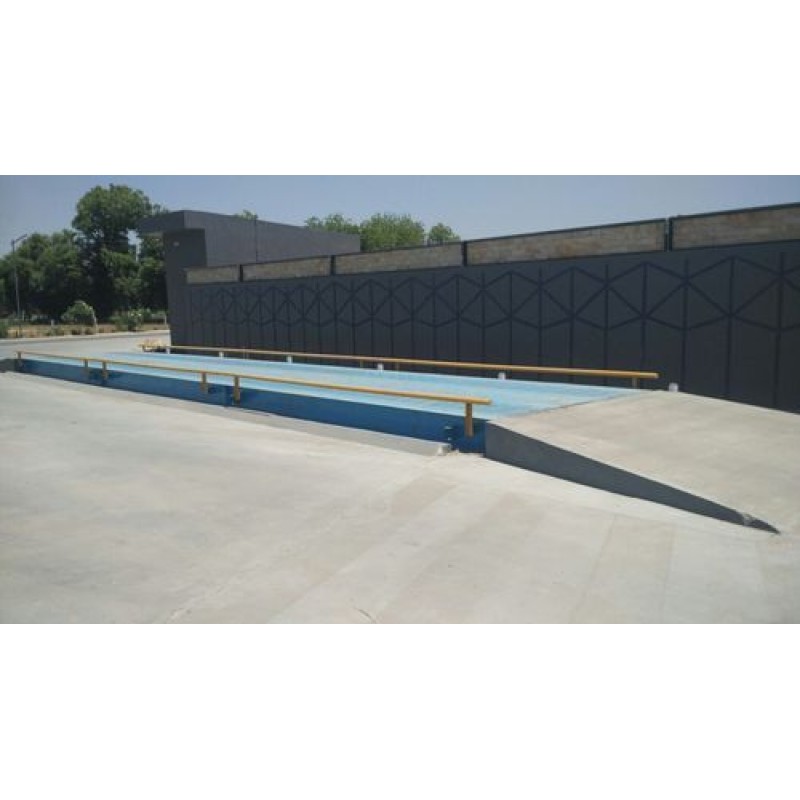

We manufacture various types of weighbridges like Pit Type Weigh bridge This type of weigh bridge is most suitable for places with limited space like non-hilly areas as the construction cost there is rational. It saves a lot of money because at non hilly areas platform is in level with the ground, vehicles can approach the weigh bridge from any direction. Most public Pit Type Weigh bridge prefer this design as they require lesser space, rickshaws & tractor trolleys can also be weighed as platform is in flush with ground level and no ramp require for truck movement because it is installed in land surface level


Minimum Order Quantity: 1 Piece


Platform Size( Mtr.)

Capacity (Ton)

Graduation (kg)

Number of Load cells

Size of Capacities

4.5 X 2.5

10

2 Kg.

4



6 X 2.5

20

2 Kg.

4



7.5 X 3

30

5 Kg.

4

All models are available from

7.5 X 3m. up to
20 X 3m.

9X3

40/50

5 Kg.

4

Standard capacities range from

1OX3

40/50

5 Kg.

4

20,000 up to
1,00,000 Kg Other

12 X 3

50

5 Kg.



Platform sizes and capacities also

14 X 3

50/60

10 Kg.

6

possible to suit individual requirements

15X3

50/60

10 Kg.

6

and regulations. Load cell range

16 X 3

50/60

10 Kg.

6

includes explosion proof

18X3

60/80/100

10 Kg. / 20 Kg

8

load cells also.

20X3

80/100

10 Kg. / 20 Kg

8




Additional Information:

  • Pay Mode Terms: T/T (Bank Transfer)
  • Production Capacity: 200 PER YEAR
  • Delivery Time: 1-5 DAYS
