USB Thermocouple Data Loggers
Product Details :
Manufacturer : Lascar Electronics Lascar K, J, T Type Thermocouple Logger with Direct USB Connection and Alarms.

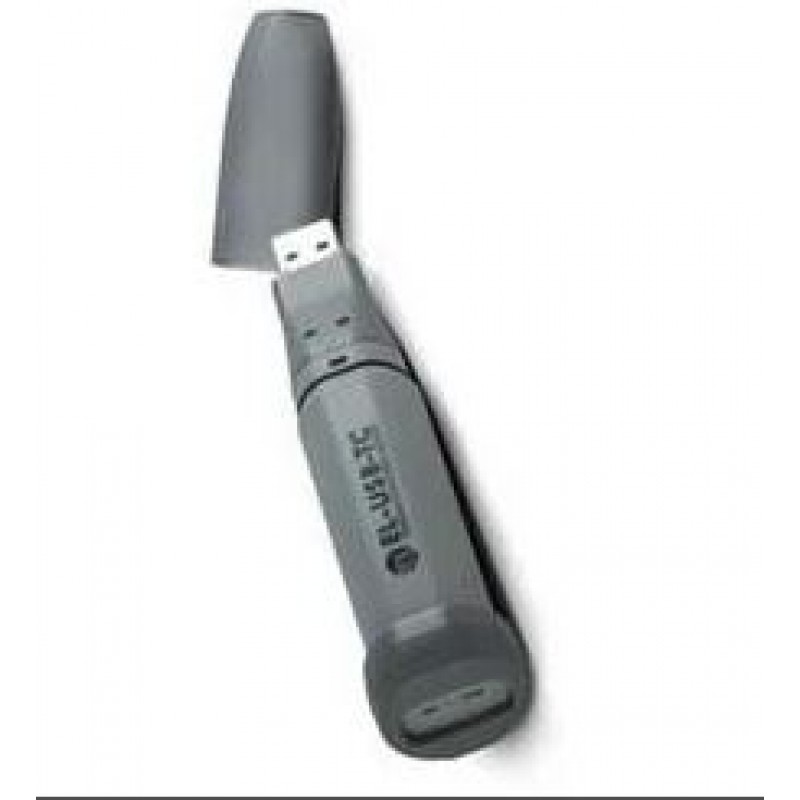

The USB Thermocouple data logger accepts any Type K, J or T Thermocouple wire. Depending on the thermocouple, the logger can measure and record temperatures from -200°C to 1300°C. Using the software, thermocouple type, thermocouple calibration, sampling rate, start-time, logging mode, and downloading and analysis of data can all be performed. The data logger features a user-replaceable battery, high and low alarm settings, LEDs to show status of logging and usb interface for fast data download.
USB Thermocouple Logger Includes
K-Type Thermocouple (0°C to 110°C) w/ 1.5 Meter Cable
Windows PC Software
1/2AA 3.6V Lithium Battery
USB Thermocouple Logger Features
- USB logger supports Type J, K and T Thermocouple Probes
- 2 User Programmable Alarm Thresholds
- Visual Blinking LED Status Lights
- User Replaceable Battery
- Includes Windows PC Software and 1/2 AA Lithium Battery
USB Thermocouple Logger Specifications
| Measurement Range | K-Type Thermocouple: -200°C to 1300°C J-Type Thermocouple: -130°C to 900°C T-Type Thermocouple: -200°C to 350°C |
| Thermocouple Probe (Included) | Type: 4" Stainless Steel K-Type Range: 0°C to 400°C (32°F to 752°F) Yellow Type K Connector Part #: EL-TC-K4-15 |
| Resolution | 1.0°C (2.0°F) |
| Accuracy | ±1.0°C (±2.0°F) @ -10°C to 40°C (14°F to 104°F) |
| Data Storage Capacity | 32,000 Samples |
| Sampling Rate | 1 Second to 12 Hours |
| Operating Range | Temperature: -10°C to 40°C (14°F to 104°F) (Note: Logger Should Not be Subjected to Temperatures Outside Operating Range) |
| Battery | User Replaceable 1/2AA 3.6V Lithium |
| Battery Life | Typically 6 Months (Dependant on Sampling Rate and Environment) |
| OS Compatibility | Windows XP, Vista, 7 (32-bit and 64-Bit Versions) |
| LED | Green: Recording and Logging Red: Alarm Thresholds Met Orange: Low Battery or Logger Data Capacity full |
| Alarm | Visual - Blinking Red LED |
| Standards Compliance | IP61, RoHS |
| Dimensions | 118mm Length x 27mm Width |
