Ultrasonic Therapy
Product Details :

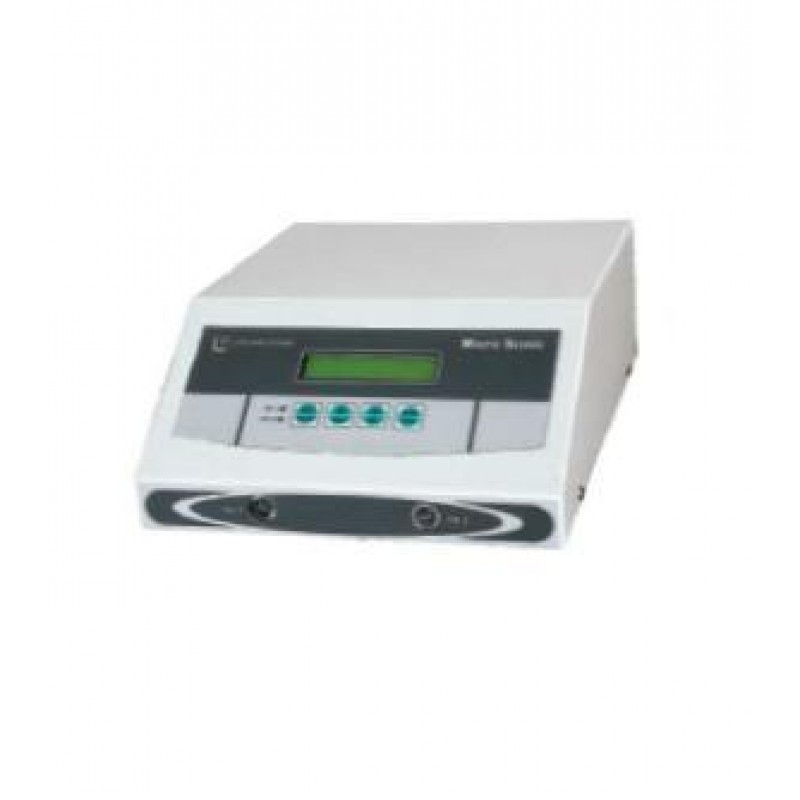

Micor-controller based Ultrasound Therapy Unit with Dual Transducer each 1MHz
Application:-
For nuro-muscular and musculo skeletal disease.To mobolise collagen tissues,remove edema & reduce pain
Specifications:-
| Dimension | 195mm, 65mm, 135mm |
| Weight | 1 Kg. (Approx) |
| Power Input | 220V AC, 50Hz |
| Ultrasound Frequency | IMHz |
| Display | 16*2 LCD Back lit |
| Max.Output in Cont.Mode | 2 Watts/cm" Or 15w |
| Max. Output in Pulse Mode | 3 Watts/cm' Or 21w |
| Pulse Frequency | 50&100 Hz |
| Average Ratio | Duty Cycle(1:2,1:4,1:8,1:16) |
| Treatment Time | 20 Minutes Maximum |
| Transducer | Visual Head Identification(CH-1,CH-2)ergonomic Head 1MHz |
| End Of Therapy | Buzzer |
Additional Information:
- Item Code: PE-123
