Ultrasonic Thickness Gauge
Product Details :
Minimum Order Quantity: 1 Piece
Model Name/Number | 45MG, 27MG, 38DL Plus |
Brand | Olympus |
Display | LCD |
Display Type | LCD & VGA |
Weight | 500gm |
Fine Testing Instruments India supplies thickness gauges from Olympus, used for accurate measurement of almost all materials. Thickness gauges include a wide range of features in order to enhance gauge performance. These are highly effective tools in the field of non-destructive testing and suitable for plastics, metals, metal composites, rubber and internally corroded materials

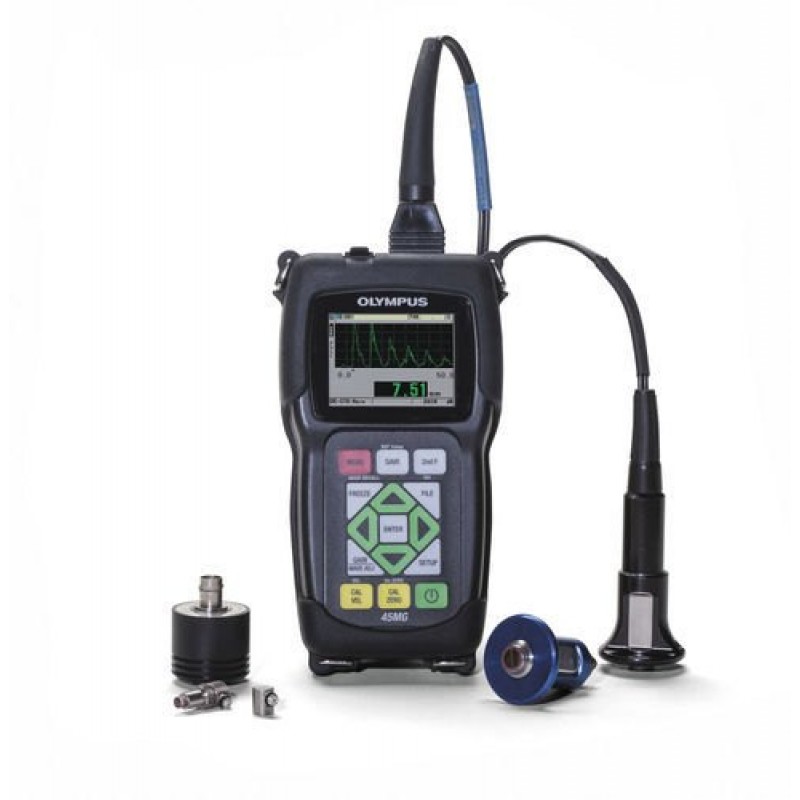

Model: 45MG
Olympus 45MG is an advanced ultrasonic thickness gauge with standard measurement features and software options. It has a high compatibility with a complete range of Olympus single element and dual element thickness gauge transducers. This technically superior instrument is the complete solution for virtually every thickness gauge application. The 45MG is a simple, user friendly gauge requiring minimal operator training. It can handle common thickness gauging applications with additional software options and transducers. It is also significantly more advanced and can take on more complex applications compared to an entry-level gauge. Furthermore, one can customize it during purchase or avail of customizations later without any complexity.

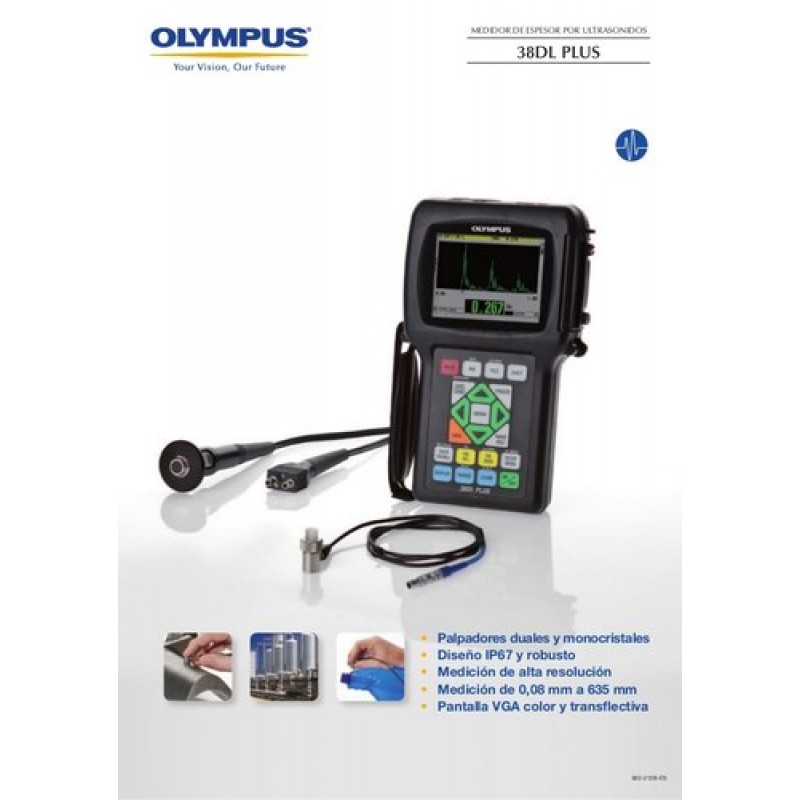

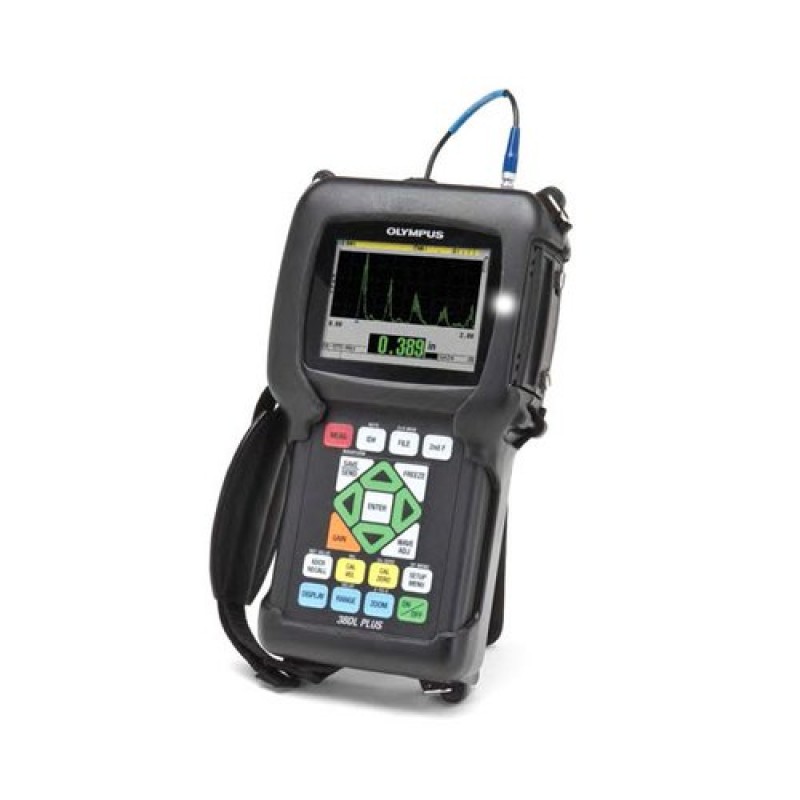

Model: 38DL PLUS
38DL PLUS is the latest ultrasonic thickness gauge from Olympus, suited for almost every ultrasonic thickness application. This compact handheld device is fully compatible with a full line of dual and single element transducers. 38DL PLUS can be used in applications ranging from wall thinning measurements of internally corroded pipes to very precise thickness measurements of thin or multi-layer materials. The 38DL PLUS comes with many advanced but adaptable measurement features. Its sealed case is designed to meet IP67 requirements to withstand the rigours of extremely wet or dusty environments. Its colour transflective VGA display provides superior readability in all lighting conditions. It features a simple keypad that can be operated with both hands with ease.
Features :
- Wide thickness range: 0.08mm (0.003in) to 635mm (25in) depending on material and transducer selection
- Corrosion thickness gauging with dual element transducers
- THRU-COAT® and echo-to-echo measurements on painted and coated surfaces
