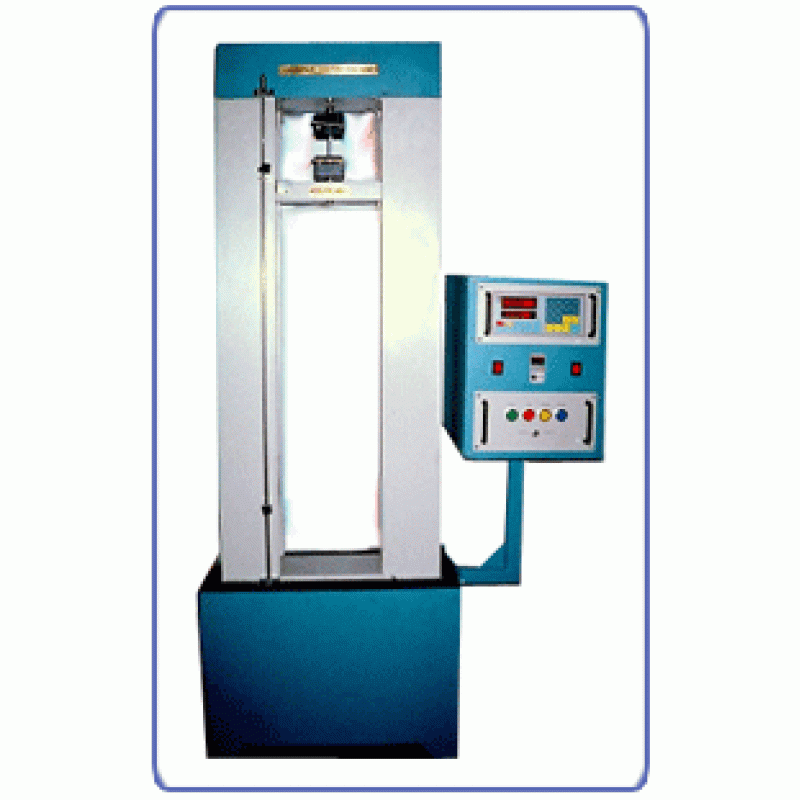

Universal Tensile Testing Machine
Testing Speed | 5- 500 mm/mnt (normally) |
Max. Distance between Grips | 990mm (normally) or above |
Displacement Resolution | 0.1mm |
Capacity of load cell | 1 or2 load cells according to req. |
Ball screw | 2 Nos (Imported) |
Max. Load capacity | As per requisition (up to 2 Ton) |
Accuracy | 0.4% of F.S |
Speed selection | speed by selection |
Grips for Sample | 1 set of Wedge Grip |
Electric Supply | single Phase 220 V Ac with 50 Hz |
Dimensions | 100cm Lx50cmW x195 cm H |
Testing Speed | 1 - 500mm/mnt |
Max. Distance between Grips | 990mm (normally) or above |
Displacement Resolution | 0.1mm |
Capacity of load cell | 1 or2 load cells according to req. |
Ball screw | 2 Nos (Imported) |
Max. Load capacity | As per requisition (up to 10 Ton) |
Accuracy | 0.4% of F.S |
Speed selection | speed by selection |
Grips for Sample | 1 set of Wedge Grip |
Electric Supply | single Phase 220 V Ac with 50 Hz on Higher capacity three phase |
Dimensions | 140cm Lx 60cmW x215 cm H |
