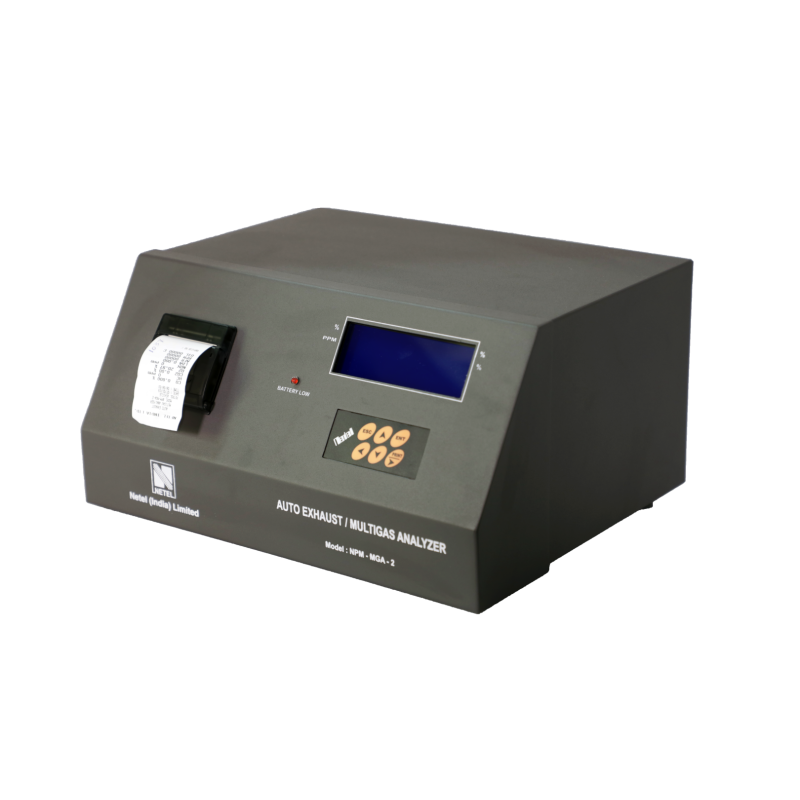

Petrol PUC Machine Model: NPM - MGA - 2

Exhaust gas analyzer/ Petrol PUC Machine

Product Details :

• Netel India Ltd is an ARAI approved manufacturer of Petrol PUC Machines.
• The gas analyzer is used as vehicle pollution testing machine for 02, CO2, CO, HC and Nox (optional).
• Our PUC testing machine is used to test petrol, CNG and LPG vehicles.
• Our Petrol PUC machines are used at PUC centers, Petrol Pumps, Vehicle Garages,  Institutes and PUC testing centers.
• Industries Covered - Automobile

Product Features

•  Measures CO, CO2,HC,O2
•  Micro controller based
•  Big LCD display
•  Short warm-up time and fast response
•  Continuous condensate discharge
•  Built in printer
•  RPM Measurement (Ripple Type)

Technical Specifications

Gasses Measured, Method

• HC (Hydrocarbon): NDIR
• CO (Carbon Monoxide): NDIR
• C02 (Carobn Dioxide): NDIR
• 0 2 (Oxygen): Electrochemical

Optional

• Nox (Nitric Oxide): Electrochemical

Measurement Range, Resolution

• co : 0-9.99%: 0.01%
• C02: 0-20.00%: 0.10%
• HC (Propane): 0-20,000 ppm : 1.ppm
• 0 2: 0-25 %: 0.01 %
• . Lambda: 0.200 - 1.800%: 0.001 %
• Air I fuel: 0-30:1: 1

Optional

• Nox: 0-5000 ppm: 1 ppm
• Oil temp. probe: 0-150°C: 1 oc
• RPM probe : 0-9990 RPM : 1 RPM
• (Induction)
• RPM probe: 0-9990 : 1 0 RPM
• (Ripple)
• Magnetic type: 0-9990 RPM : 1 RPM

Accuracy

• CO: +1- 0.03% abs I+ 1- 3% rei (0-10%)
• Whichever is higher
• C02: +1- 0.04% abs or +1-4% rei, whichever is higher
• HC: +1- 10ppm abs or +1-5% rei (0-2000 ppm)
• 0 2: +I- 0.1% abs or +/-3% rei
• NOx: +1- 25ppm abs or +l-3%rel (0-4000 ppm)
• +1-5% rei (4000-5000 ppm) whichever is higher

Operating Pressure

• 750-1150 mbar

Operating Environment

• 32 to 122° F (0 to 50° C) to 95%Humidity
• Minus 1,000 to 8,000 ft. (-300 to 2,500m)

Operating System

• Micro-controller driven

Sample Acquisition Time

• Approximately 6 Seconds

Warm UPTime

• 1 Minutes - 3.5 Minutes

Printer

• lnbuilt 24 column printer

PC Communication

• Analyzer with serial communication
• (RS 232 interface)

Power Supply

• 12VDC
• Power consumption - 35 W
• 230 VAC
• Power Consumption - 1 OOW

Dimensions & Weight

• 40cm x 32cm x 20cm
• 10kg

Optional Accessories

• Oil Temperature probe
• RPM probe

Accessories

•  Sampling Probe
•  PU tube 7 meter long
•  Universal exhaust pipe set
•  Mains cord
•  Printer roll
•  Operation manual
•  Instrument cover
•  RS 232 cable
•  PC end Software CD
•  Power clamp for 12 VDC supply

Product Applications

• Exhaust Gas Analyzer/ Infrared gas Analyzer based on the internationally accepted principle of non-dispersive infrared (NDIR) absorption.
• It is designed for measurement of CO, CO2, HC,O2 and Lambda in the exhaust of 2-stroke & 4-stroke automotive vehicle petrol engines to meet BSI, BSII, BSIII, BSIV and BSVI emission standards.
