Water Distillation Unit Distil-On - GISQ- 4
The all new Distil-On - GISQ- 4 distillation units give high quality distilled water with an output of 4.0 lit/hr, having a power input of 3000 Watts for single distillation.
Unique features are, a highly efficient borosilicate condenser, a well designed boiler fitted with a silica heater and screw thread connectors, making it an ideal, efficient and economical equipment to obtain pure distilled water for use in general laboratories and in numerous other end uses.
Specifications :
Output | 4
ltrs/hr |
Distilled
Water Quality | |
PH | 5.5 - 6.0 |
Conductivity | 1.0 - 2.0 μS/cm. |
Distillate quality | Pyrogen
free. |
Electrical Power | 220/240V, 50/60 Hz Single Phase, 3 KW
Silica Heater |
Cooling
water requirement | 1.5 ltrs/min |
Minimum
pressure | 3 p.s.i. |
Dimensions (W x D x L) (mm) | 600x185x480 |
Weight | 8kgs (app.) |
Features:
- Silica Heater.
- Gate Value to prevent water wastage.
- Flow switch for boiler safety.
- Teflon drain cock for easy maintenance.
- High quality distillate.Power coated stand.
- Safety Built - in
Silica Heater :
Distil-On - GISQ- 4 is Provided with a threaded Connection for easy, safe and quick assembly of Silica Heater
Easy Cleaning :
The Boiler is provided with a Teflon screw cock for easy cleaning of the boiler

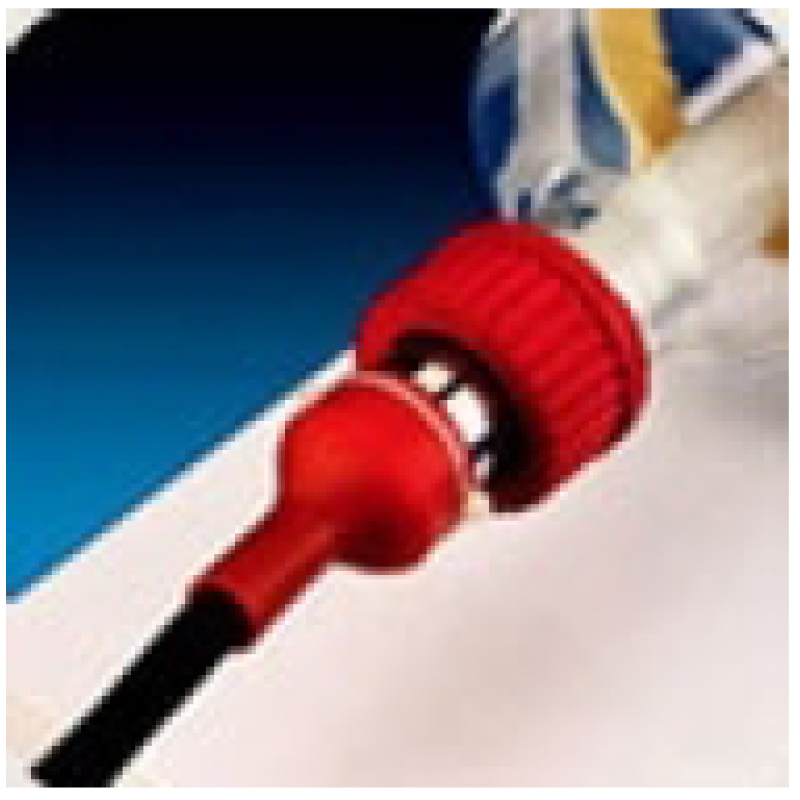

Screw Thread Connectors :
All plumbing connections are via screw thread connectors with hose, without using excessive force, avoiding the danger of glass-ware breakage aduring assembly.
Packing Information: DISTILL-On GISQ-4
Dimensions (7 Ply Carton) : 79 x 53 x 26cms
Gross Weight : 14.50 kgs.
