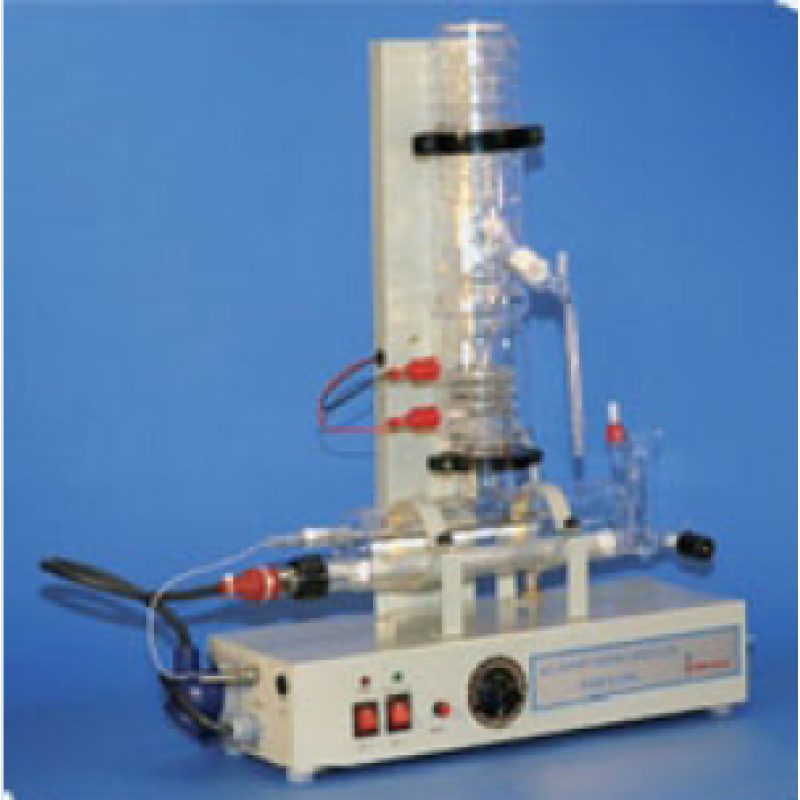

Water Distillation Unit XL-RSH Series / HORIZONTAL QUARTZ
Model: GI-QDD2 & GI-QDD2.5
The New advanced models - XL - RSH series have the following additional features
1.Replaceable Silica Heater - This eliminates frequent shut down of the equipment and is service free
2.Built - in Triple Safety :-
- Gate Valve : Conserves cooling water wastage in case of power failure.
- Flow Switch : Additional in - built safety for the equipment. Unit shuts off if cooling water to condenser fails.
- Pressure Temperature Switch (PTS) : The Boiler is equipped with PTS for safety of the boiler. If water level falls below the heater, the unit switches off.
3.Quartz Teflon Stopcock - For easy draining and cleaning of boiler
4.Quartz Threaded connection - For easy assembly and maintenance.
Additional Optional Accessories (at extra cost for both panel series and XL -RSH units)
- Provision for Single Distillation.
- Quartz Bulb Condenser for extra cool distillate.
- Dual Safety cut-out-Required only for standard models.
- Quartz Reservoir with Teflon Screwcock.
- Micron Filter for feed inlet.
- Level Sensor - For automatic operation of the still.
- Dechlorite Filter - To remove chlorine particles from water
- Phosphate Cartridge - For prevention of scale formation.
- Reservoir Stand (SS).
GIQD-XL-RSH series Boiler and Condenser : QUARTZ
Model | GI-QDD-2 | GI-QDD-2.5 |
Output | 2.0 lit/hr | 2.5 lit/hr |
Power Rating | 3.5 KW | 4.5 KW |
Cooling Water Req. | 3 lit/min | 3.5 lit/min |
Distillate Quality | Pyrogen free | Pyrogen Free |
Electric power | 220/240V, 50/60Hz Single Phase, Silica Heater | 220/240V, 50/60 Hz Single Phase, Silica Heater |
Distillate temp | 60-70 C. | 60-70 C. |
Conductivity | 0.1-0.5 S/cm | 0.1-0.5 S/cm |
