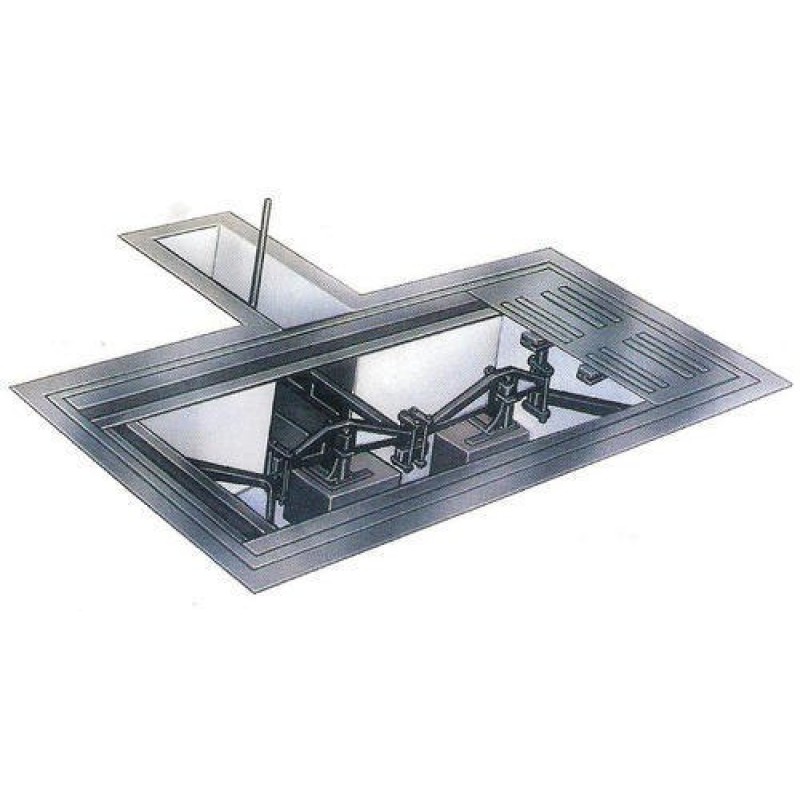

3 Lever System Mechanical Weighbridge
Product Details :
Material | Mild Steel |
Type | MECHANICAL |
Weighing Capacity | 50 TON |
Brand | MANSI |
Load Capacity | 50 TON |
1 | 360000 |
We are expertise has enabled us to come up with a comprehensive range of quality-assured 3 Lever System Weighbridge,which is manufactured using excellent quality raw material and components. The offered range of weighbridges are available with us in various specifications to meet the exact requirements of patrons.
Specifications:
- Manufactured according to IS : 1436-1960 and other relevant IS specifications and Weights & Measures Acts and Rules
- Lever: Grey iron castings & M.S. steels
- Platform: Made of 12 mm steel plates with welded M.S. strips on the top and it is bolted on girders
- Knife-edges & bearings: All knife-edges & bearings are made from EN-31 alloy steels
- Steelyard: The notches are machine cut & a notch protection bar is provided as also a looking device
- Index: The index strip is suitably inclined for easy reading
- Strength: Robust in construction with ample safety margin above weighing capacity
- Painting: All metals parts have two coats of good bitumen paints
Additional Information:
- Production Capacity: 100 PER YEAR
- Delivery Time: 1-5 DAYS
