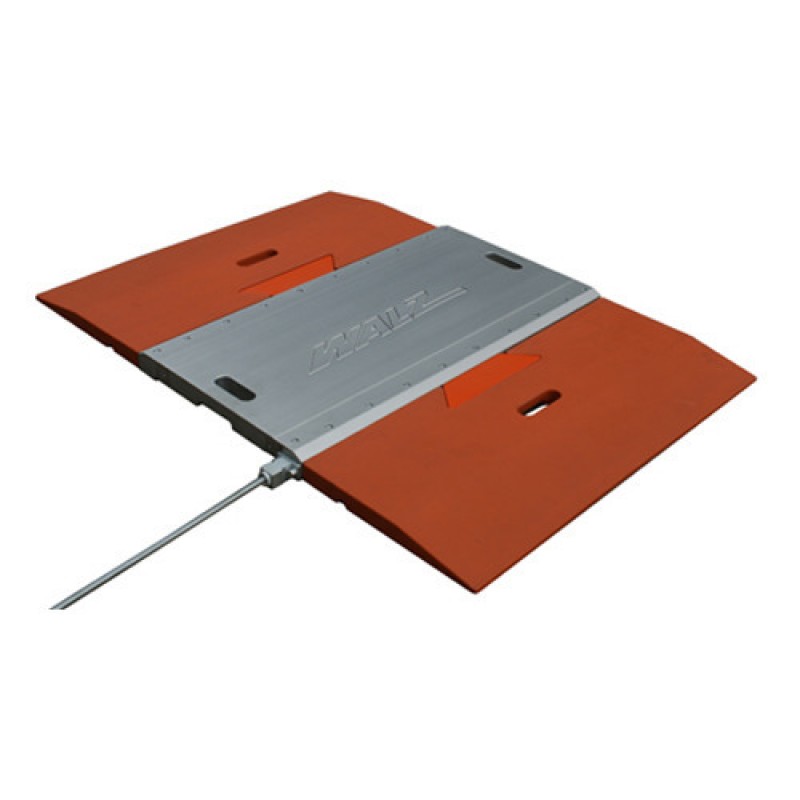

Portable Pad Weigher

Product Details :

For meeting the diverse requirements of our clients, we are engaged in supplying and distributing Portable Pad Weigher. The weigher is suitable for weighing trucks or tractors in construction sites, mines, factories. This product is required at the places, where there is space constraint.

Specification :

• Rated capacity: up to 20 ton per pad @ 20 lb graduations
• Material: high strength aluminum alloy
• Static accuracy: 0.25% full scale or better
• Dynamic accuracy: /- 1% of full scale with leveling track (see weigh in motion)
• Dynamic accuracy: /- 3% of full scale without leveling track
• Overload capacity: 200% full scale
• Input/output resistance: 560 ohms /- 50 ohms
• Output: 0.6 to 1.0 mV/V
• Excitation: 5 to 24 VDC
• Stability: 0.5% full scale/year
• Ground level requirement: <5mm within 0-4m
• Weight: 52 lbs including ramps, 42 lbs without ramps
• Operating temperature range: 10 to 55 deg c

Additional Information:

• Production Capacity: 200 PER YEAR
• Delivery Time: 1-7 DAYS
