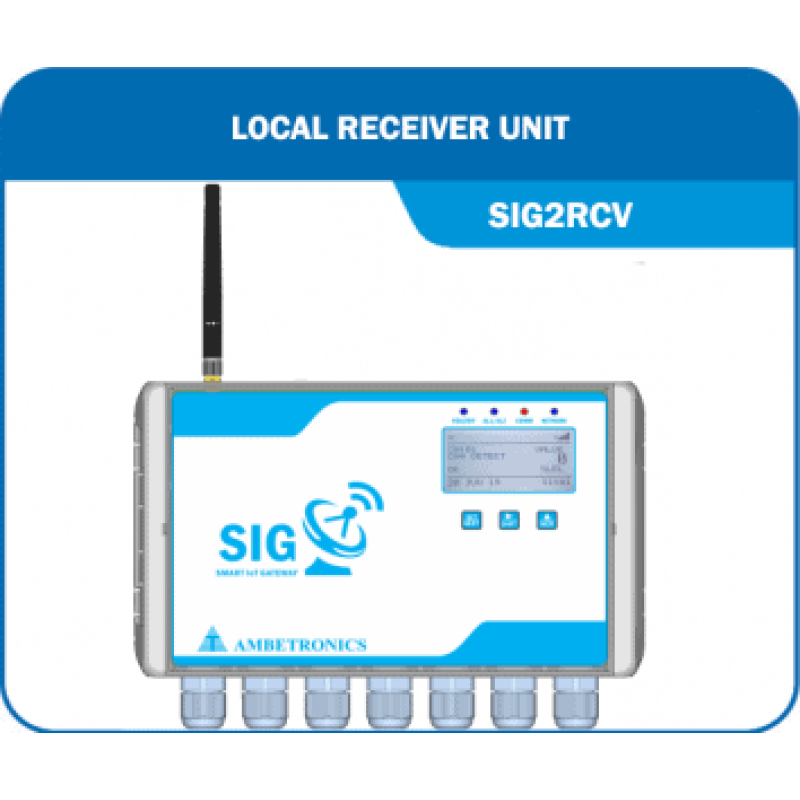

Wireless Control Unit

Description:-

The WCU-100 series Wireless Control Unit works like a Universal Local Receiver for all our wireless Indicators and Detectors. These units network through 2G / 4G compatible modems and display the values of last synched device details, time, GSM Status & RTC.

They can be placed in the Central Monitoring Room or Security Room for remote supervising and can support upto 100 number of wirelessly connected indicators or detectors.

Technical Specifications :

DISPLAY :

• LCD display : 128 x 64 pixel Graphical display
• Status : Healthy LED, Fault LED for Network indication (SIM fail etc.) last synchronized device Serial No. & time
• of detectors : upto 100 Nos. supported
• Message storage capacity : upto 100 Nos. (in failure of Modbus communication)

ENVIRONMENTAL SPECIFICATIONS:

• Temperature Range : -20°C to 50°C
• Relative Humidity : 10-90% RH, Non-Condensing

HOUSING FOR RECEIVER:

• Protection class : IP-65
• Cabinet Material : Polycarbonate, grey colour
• Cable Entry : Thermoplastic cable gland (IP 68)
• Dimension : 160mm (H) x 240mm (W) x 90mm (D)
• Mounting : Wall Mounting / Stand Mounting / Pipe Mounting
• Weight : Approx 600 grams

POWER SUPPLY:

• 230VAC
• 24VDC
• 5V, 2A SMPS Adaptor
• Solar System

NETWORK:

• Modem : 2G/4G compatible modem
• Antenna : upto 2db

CONNECTIVITY:

• RS-485
• RS-232
• Ethernet Port

SUPPORTING PROTOCOLS:

• Modbus RTU
• Modbus over TCP/IP
• Modbus TCP/IP

SOFTWARE:

• PLC
• SCADA
• PC Software
• Any Modbus Master.

Applications:-

Basically, these devices can be used for all those similar applications where the conventional cabled Temperature / Humidity Indicators were being used. But, extensively, these devices are required in areas where use of cables is inconvenient due to proximity i.e. the indicators and multi-channeled monitoring control units are placed far apart or on different floors or where the indicators or detectors are placed in confined areas. Hence, these devices find theirs usage in most of the applications of the following industries:

• Research & Development Laboratories
• Pharma Warehouses
• Cold Rooms & Cold Storage in Pharma or Food Industry
• Clean Room Monitoring
• Cold Chain Monitoring
• Pulp & Paper Industry.
