Wrap Reel-Motorized
Product Description

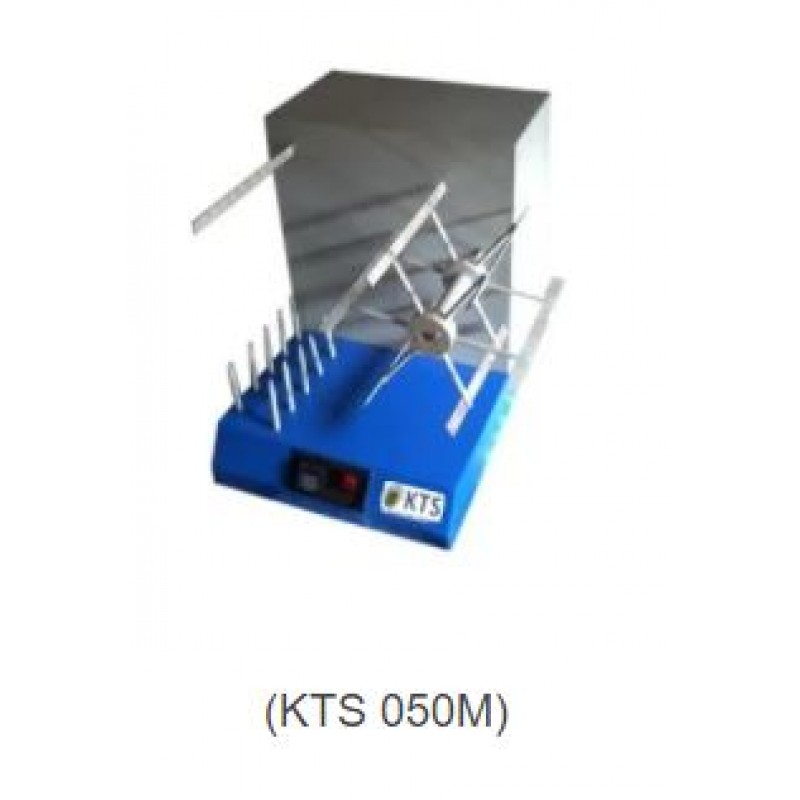

Wrap Reel-Motorized - ITEM CODE: KTS-050M
- Motorized Wrap Reel is used to wind yarn thread to a specified length, and then to test its strength of lea and quality. It can also be used for calculating the yarn count
- Wrapping simultaneously 5 yarn hanks. Equipped with pre-determined digital counter (reel turns from 1 to 999).The moveable arm makes hanks removal easier. Steel-Aluminum frame. Motorized Wrap Reel for yarns with 1 meter reel circumference, equipped with digital speed counter. Automatic stop of the test. Operation at the same time 5 threads. Circumference1 M or 1.5 yard per 1 turn
- WEIGHT Approx: 40Kg
- DIMENSIONS:(L) 900 (P) 600 (H) 600 mm
- POWERSUPPLY: 220 V 50/60 Hz monofase /singlephase
- Standards: ISO 2060, DIN 53830, ASTM 1907 / 2260, IS 1315
