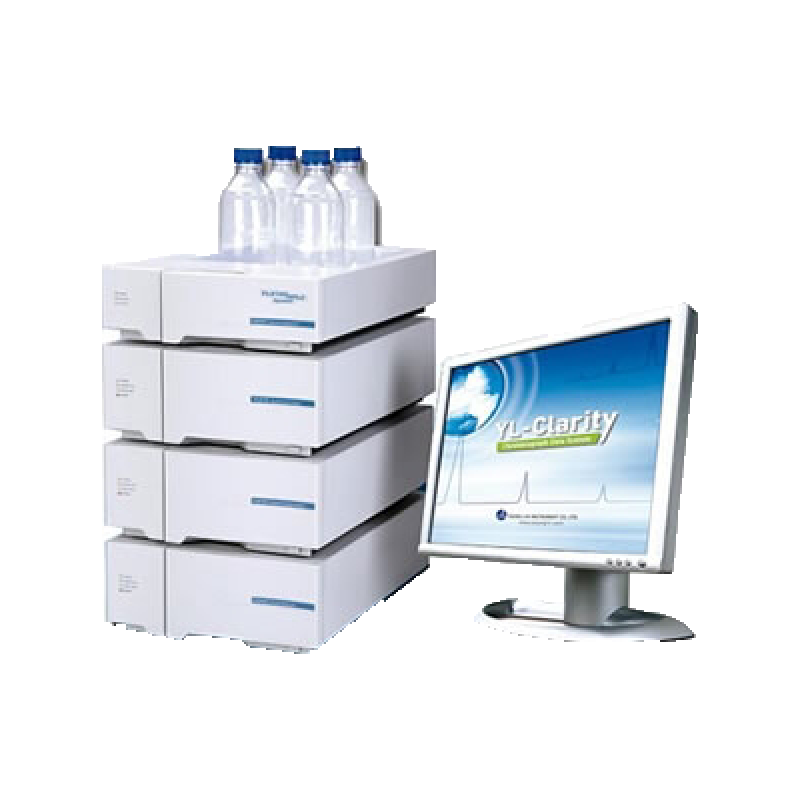

YL9100 Plus HPLC (Analytical HPLC)

Product Details:


             YL's HPLC is built to provide an exceptional cost/performance ratio. Continued research and development provide high-end performance and features, while a state of the art manufacturing facility ensures outstanding quality. With more than 30 years experience and development, we are proud to present our new HPLC, YL9100 Plus. Newly improved YL9110 Plus Quaternary Pump delivers the enhanced mixing performance to provide the very stabilized baseline by reducing noise when it comes to change the solvent composition. With automatic compressibility compensation minimizing flowrate deviation in the pump, YL9100Plus HPLC ensures superior RT repeatability by providing accurate and precise flow rates

• Superior Sensitivity
  One of many innovative features of YL9120 UV/Vis Detector is shielded optic design, which protects the optical components from dangerous contaminants such as fine dust or harmful gases, providing high detection sensitivity. In addition, the Seya-Namioka Monochromator and a new Blazed Holographic Concave Grating enhance light intensity, ensuring high sensitivity over the entire wavelength range


• Outstanding Reliability
  One of many innovative features of YL9120 UV/Vis Detector is shielded optic design, which protects the optical components from dangerous contaminants such as fine dust or harmful gases, providing high detection sensitivity. In addition, the Seya-Namioka Monochromator and a new Blazed Holographic Concave Grating enhance light intensity, ensuring high sensitivity over the entire wavelength range


• YL9110 Plus Quaternary Pump
  Operating principle Parallel dual-plunger pump, Low-pressure gradient- Number of Solvents up to 4 solvents- Gradient formation 4-channel mixing valve- Composition Precision < 0.1 %- Composition Accuracy < 0.5 %


• YL9111 Plus Binary Pump- Operating principle Double Parallel dual-plunger pump, High-pressure gradient- Number of Solvents 2


• YL9112 Plus Isocratic Pump- No mixing valve- Operating principle Parallel dual-plunger pump- Easily upgraded to YL9110 Plus Quaternary pump


• Pump Specification in Common YL9112 Plus Isocratic Pump- No mixing valve- Operating principle Parallel dual-plunger pump- Easily upgraded to YL9110 Plus Quaternary pump YL9110 Plus Quaternary Pump- Operating principle Parallel dual-plunger pump ,Low-pressure gradient- Number of Solvents up to 4 solvents- Gradient formation 4-channel mixing valve- Composition Precision < 0.1 %- Composition Accuracy < 0.5 % YL9111 Plus Binary Pump- Operating principle Double Parallel dual-plunger pump, High-pressure gradient- Number of Solvents 2 Smart Control Setting any factors or pressing 'Purge' button, you can easily set the flow rate or solvent composition. Also, you can monitor the pressure and status of pumps. Fully Automatic Prime You only need to set the solvent composition and press 'Prime On'. It'll automatically flow each solvent at 100% to remove bubbles or change the solvent in the flow path and then get back to the set composition rate to be ready.- Compressibility compensation Automatic- Flow range - Analytical 0.001-10 mL/min- Semi-prep 0.01-50 mL/min- Flow rate accuracy +-1 % at 1 mL/min- Maximum pressure- Analytical 6000 psi - Semi-prep 3500 psi> Operating range 0-6000 psi up to 5 mL/min > Operating range 0-3500 psi up to 35 mL/min> Operating range 0-3000 psi at 5-10 mL/min > Operating range 0-2500 psi at 35-50 mL/min- Automatic prime/purge- Safety & maintenance Leak detection, Diagnostics, Error detection
