Yarn Appearance Board Winder-Digital

Product Description

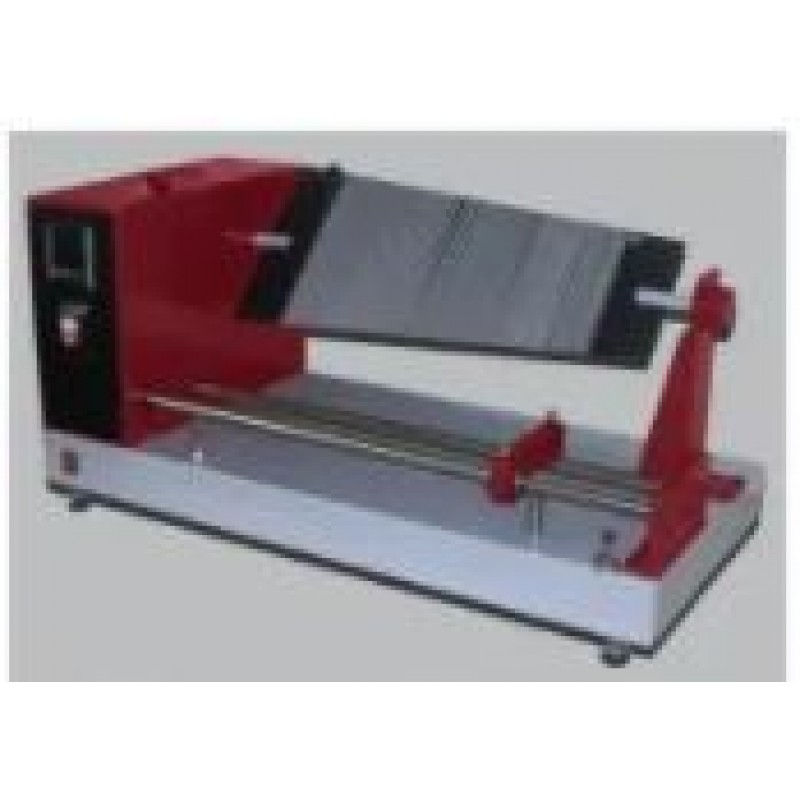

Yarn Appearance Board Winder-Digital-ITEM CODE: KTS-056D

Yarn Appearance Board Winder to assess the evenness, hairiness, neps and other imperfections in a representative sample of yarn wound at a pre-determined pitch onto a tapered black yarn board.

SALIENT FEATURES: Specially designed equipment to access the appearance of yarn irregularities (like thick place, thin place, slubs etc.) against standard rating photograph.  Two different types of boards, one parallel, other tap end, supplied for winding the yarn.  A Special Separate unit for holding yarn bobbin.  Yarn wrapped on the board can have 20, 22,26,32,38 & 48 ends per inch.  Six traverse speed options for fine to coarser count of yarn.

Supplied With: Main Unit: 01 No. Bobbins Holder Stand: 01No. O Ring Belt for pulley: 01 No. Tapered Board (Made of Aluminum) 575 x(250 x 160 mm): 01 No. Parallel Board (Made of Aluminum) 575 x 250 mm: 01 No.

TECHNICAL DETAILS

• Size of Tapered Board: 575 x (250 x 160 ) mm
• Size of Paralleled Board: 575 x 250 mm
• Standard Yarn Spacing: 20, 22, 26, 32, 38 & 48 per Inch.  8, 9,10, 13, 15 & 19 per Cms.
• Dimensions: 620 x 370 x 340mm (LxWxH), Weight: 30kg
• Standards: ASTM D2255, GB/T 9996
