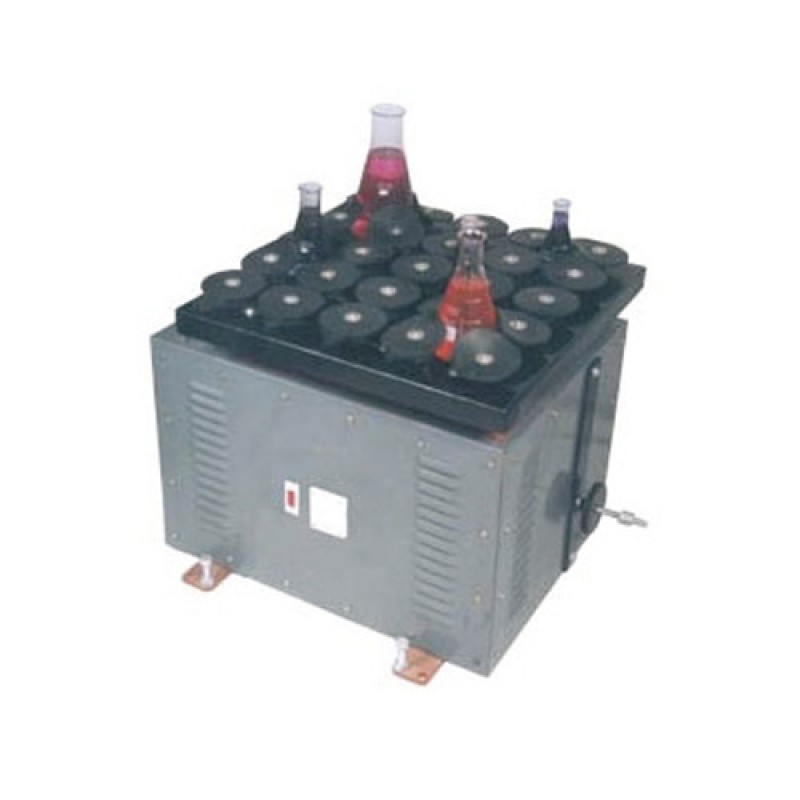

Rotary Shaking Machine is useful for uniform mixing by circular motion in a horizontal plane with a circuit diameter of about 25 mm. Used extensively in tissue culture work, aeration of fermentation and other chemical mixing procedures. The driving mechanism is enclosed in a mild steel sheet cabinet beautifully painted. The shaker is fitted with DC Motor with an electronic speed regulator. The DC Motor will ensure continuous work and precise speed control. The shaking speed will be 50-250 RPM approx. The top platform has neoprene rubber discs to hold conical flask in between them.

Platform Sizes:

    12" x 12" 9 flasks of 250 ml
    18" x 18" 16 flasks of 100-250 ml.
    24" x 24" 36 flasks of 50 ml.
    24" x 24" 25 flasks of 250 ml.
    24" x 24" 16 flasks of 500 ml.
    24" x 24" 9 flasks of 1000 ml.
    36" x 36" 49 flasks of 100 ml.
    36" x 36" 36 flasks of 250 ml.
    36" x 36" 36 flasks of 500 ml.
    36" x 36" 16 flasks of 1000 ml.
    48" x 48" 100 flasks of 100 ml.
    48" x 48" 81 flasks of 250 ml.
    48" x 48" 64 flasks of 500 ml.
    48" x 48" 49 flasks of 1000ml.
    48" x 48" 16 flasks of 2000ml.
    60" x 60" Cap. Of flask as per


Specifications:

    Type: Circular
    Function: High-Frequency Vibrating Screen
    Transmission Structure: Eccentric Vibrating Screen
    Usage: My Shaker
    Works: Rotary Vane Shake


Additional Information:

    1. Production Capacity: 100 Piece Per Year
    Delivery Time: 6-8 weeks against confirmed order
    Packaging Details: 1. At first, the unit is thoroughly cleaned and Wrapped with Polythene Sheet.

    2. Then the entire instrument is covered by Thermocol or Mic-Pag wherever it is necessary.

    3. Foundation is also made on the wooden platform to hold the equipment in its original position.

    4. At last, the wooden box is sealed to pack the complete instruments.
