Product Details:

• Power 230V AC
• Temperature Range As per censor
• Type Digital

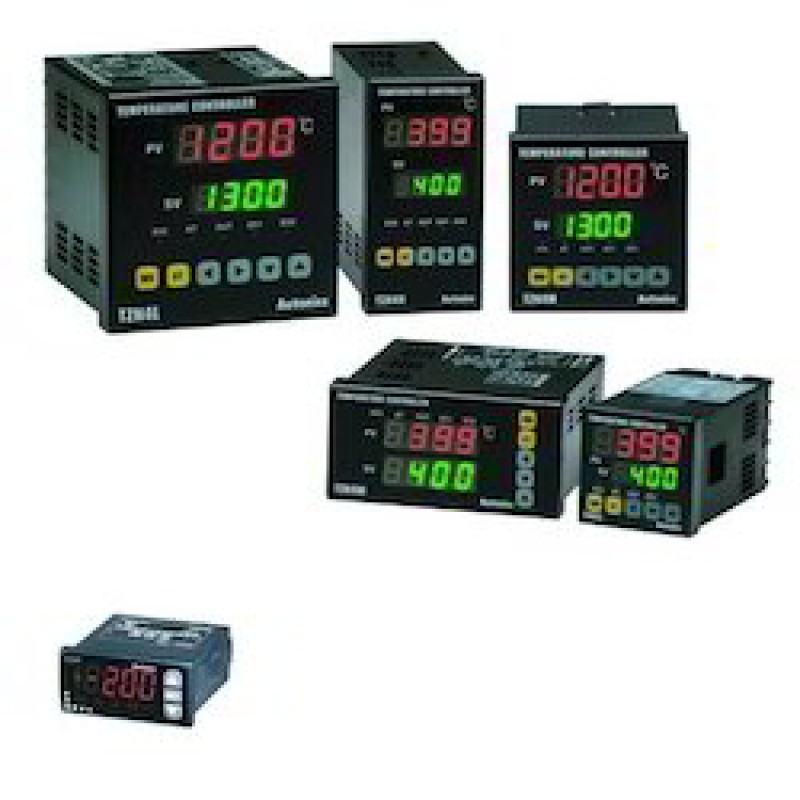

Backed by a sophisticated infrastructure, we have emerged as a leading manufacturer of Temperature Controllers.

Single Display PID Temperature Controllers (TC4):

• Single Display Temperature controlling with upgraded PID algorithm
• Input: Thermocouples (J,K) and RTD (Pt-100)
• output: Relay and SSR Drive output embodied together (Parameter selecting a type
• optional Event Outputs: 2 relay alarm
• Higher visibility with wide display part
• Available Various Standard Sizes
• 100ms high-speed sampling and 0.5% high accuracy control
• Power supply: 100-240VAC 50/60Hz

Dual PID Auto Tuning Temperature Controllers (TZN / TZ):

• Multi – input (13 kinds of input): Thermocouples, RTD, Analog voltage/current
• Available Various DIN Standard Sizes (48x48, 48x96, 96x48, 72x72, 96x96mm)
• Main output : Relay, SSR Drive output, current(4~20mA) options
• Sub output (Event outputs): Loop break Alarm, Sensor break Alarm, 7 kinds of alarm output and 4 types of Alarm selection option
• 2-type of PID control function (PID-Fast, PID-Slow)
• 2-step autotuning control
• Additional outputs: PV-transmission (4~20mA) and RS485 serial common Port
• Display accuracy: F.S ± 0.3%
• Power supply: 100-240VAC 50/60Hz or 24VAC / 24-48VDC

Cooling / Defrost Temperature Controllers (TC3YF):

• Simple On/ Off controller
• Input: NTC (Thermistor) or RTD (Pt100)
• Indication range: -40.0~99.9ºC (NTC), -99.9~99.9ºC (RTD)
• Auto / Manual Defrost selection, Start-up delay of compressor, Re-operation delay and operation delay of evaporation – fan
• Input correction function
• Available to set operation period for protecting compressor in error
• Control output: Relay
• Power supply: 100-240VAC

Automatic Switching Function of 5-Point Input type Temperature Controllers(T4WM):

• 5-channel Indicator type
• High accuracy measurement: FS ± 0.5%
• 5-point temperature measurement
• Automatic or Manual Channel display selection
• Input: TC (J, K), RTD (Pt100)
• DIN W96 x H48mm
• Power supply: 110/240VAC 50/60Hz
• Screw type terminals

Thumb-Wheel type Temperature Controllers (T3S / T4M / T3H / T4L):

• Available Various Standard DIN Sizes
• On/Off and Proportional Control type
• Input: Thermo couples (J,K,R) and RTD (Pt-100)
• Main output: Relay, SSR, current(4~20mA) options
• Display accuracy: F.S ± 0.5%
• Power supply: 100-240VAC for T3S, 110/220VAC for T3H / T4M / T4L

Alarm, Sub output type Temperature Controllers (T3HS / T3HA / T4MA / T4LA):

• Available in Various DIN Standard (48x96, 72x72, 96x96mm) Sizes
• On/Off and Proportional Control type
• Thumb wheel type (Digital switch) set-keys
• Input: Thermo couples (J,K,R) and RTD (Pt-100)
• Main output: Relay, SSR, current(4~20mA) options
• Alarm / SUB output: Relay
• Display accuracy: F.S ± 0.5%
