Introduction :-

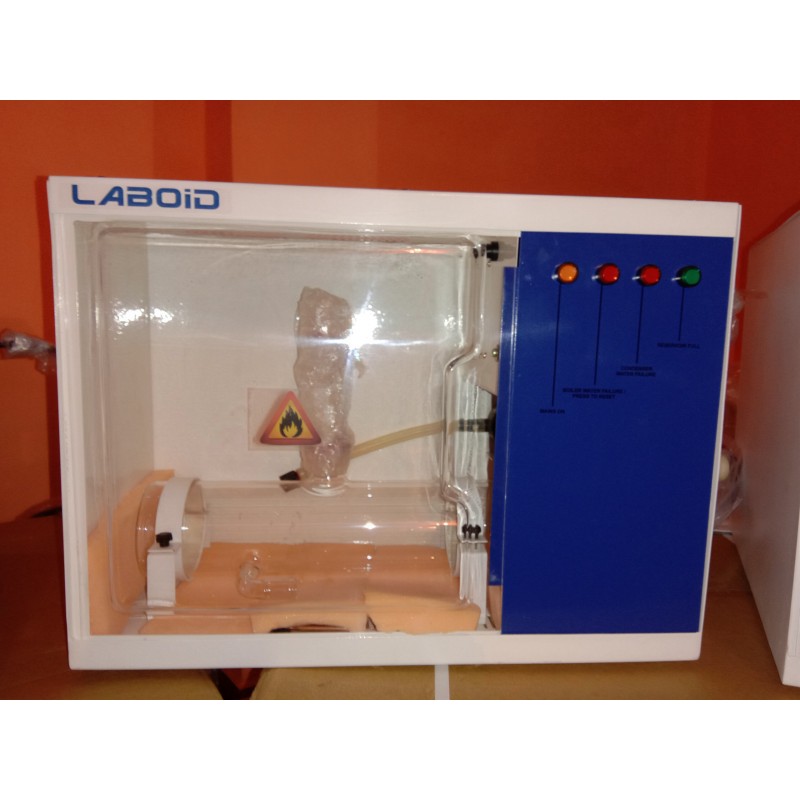

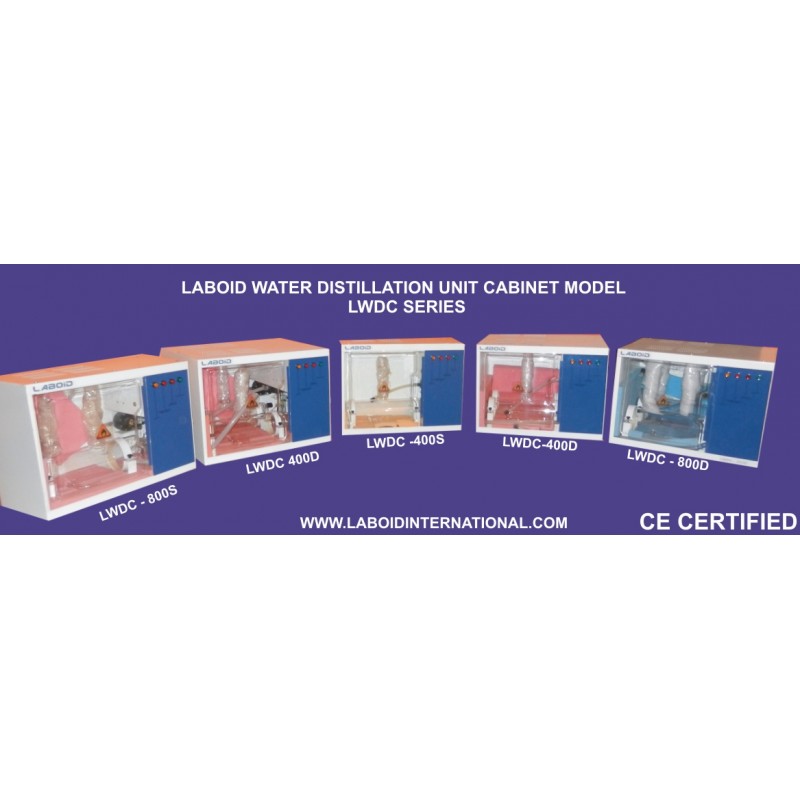

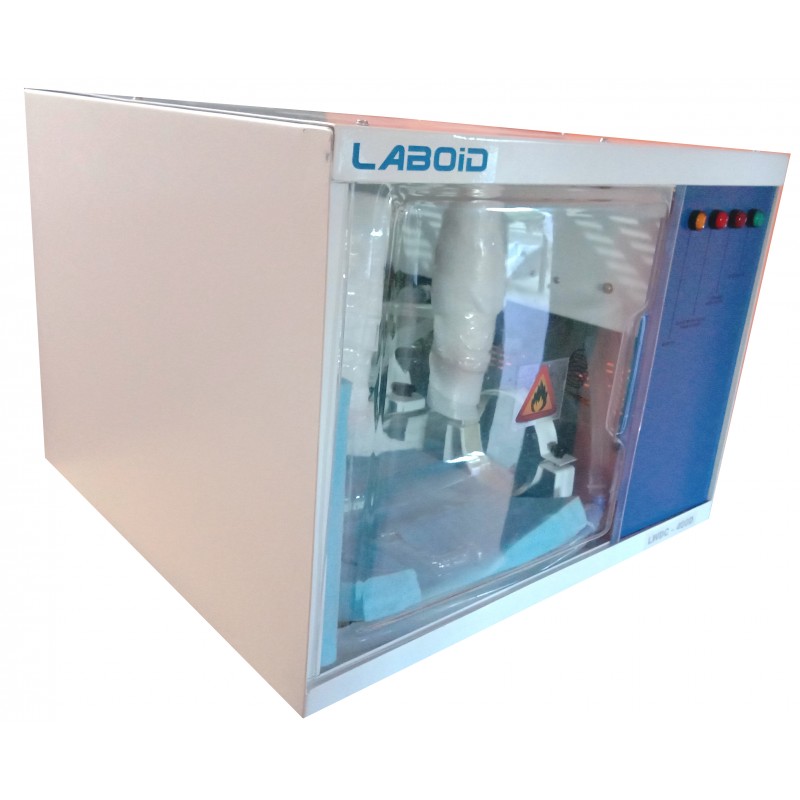

LWDC stills high quality Borosilicate 3.3 Glass incorporating a high quality double coil condenser and boiler system or Semiconductor Grade Quartz for the double coil condenser and boiler system , combined with a silica glass sheathed heating element which provides a high quality pyrogen-free output with conductivity <0.4 µS/cm for Quartz distillation models

The unique condenser design ensures that the droplets of distilled water remains in contact with cooling coils for the longest possible time producing cold distilled water and preheated boiler input which increases efficiency of the unit.

A flow sensing device will detect any reduction in the flow of cooling water below the required level  and will turn off the still before it can overheat. As a fail-safe device there is an over temperature sensor mounted in the boiling chamber.

The LWDC is very easy and safe to assemble and maintain. Both the acrylic safety screen and the cabinet lids are removable giving unrivalled access to the glassware components. Screw threads are incorporated on all water connections so hoses can be fitted and removed easily and safely without risk of breakage.
