The unit consist of a

Engine :-

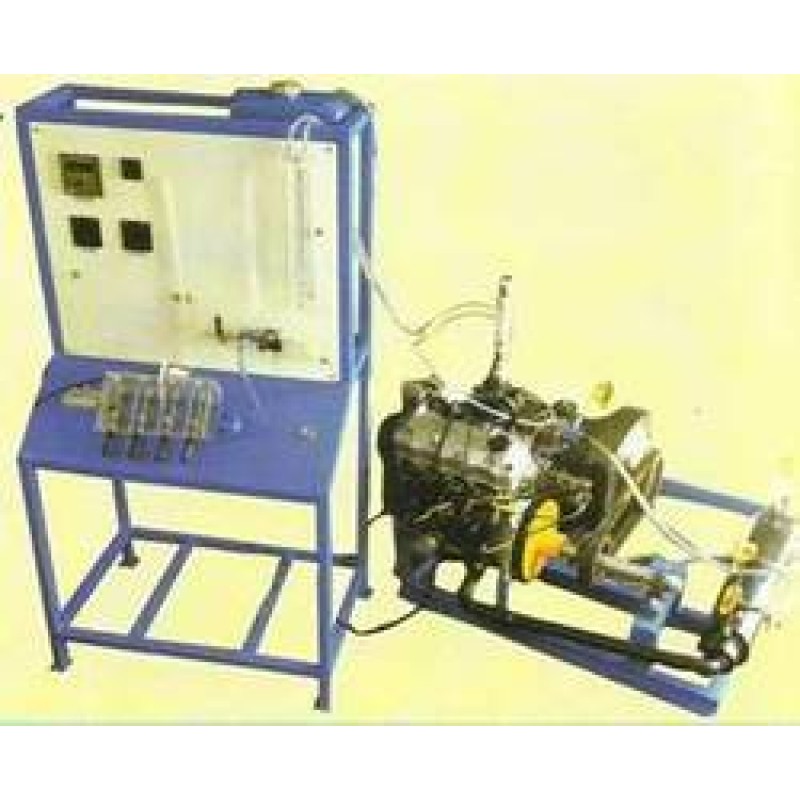

• Petrol engine test rig consisting of a multicylinder 4- stroke 4 cylinder petrol engine, developing about 10 H.P. at 1500 R.P .M. engine.

Electrical Dynamometer:

• A suitable capacity generator With water rheostat, load bank & load measurement arrangement.

The unit is ac companied with the following accessories:-

• An ignition switch, a radiator, a self starter, a battery ammeter, a throttle control. Special arrangements by switches for cutting off ignition of each cylinder for morse test, all mounted on a suitable panel board, a battery for starting the engine, clutch arrangement.

Fuel arrangement: -

• Fuel tank mounted on a sturdy iron stand burette tube, 3 - way cock connecting tube, a stop watch.

Cooling water arrangement:-

• Cooling water arrangement by cooling pipings. A Measuring Jar to determine the discharge of cooling water.  Special arrangement to use either radiator or external cooling water supply system.

Exhaust gas temperature (Digital temp. indicator)

Air intake measurement: -

• Air intake reservoir with orifice plate & Differential manometer.


SERVICE REQUIRED:-

• 230 V. A.C. supply earthing connection.

• Rigid foundation to absorb the vibration.

•  Water supply and piping to & from engine, calorimeter & dynamometer to be provided by Institute.

• Petrol / Diesel for Testing.
