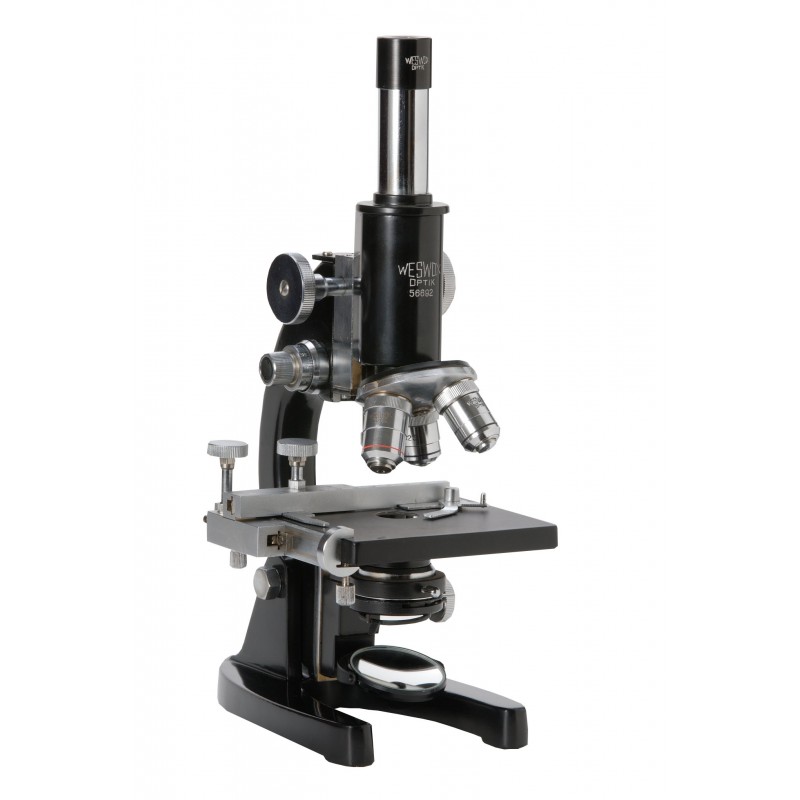

SENIOR LABORATORY AND MEDICAL MICROSCOPE

(Wide Field Model)

Supplied with LED illumination wth battery back up

FEATURES:

ü  Brass metal construction, Long life use

ü  Warranty: 2 Years.

ü  Brass Mechanical stage

TECHNICAL SPECIFICATIONS:

ü Monocular body with horse shoe shaped base hinged type, versatile designed inclinable through 90o Aluminium Die-Cast parts.

ü Mechanical tube length 160 + 1 mm.

ü Triple revolving nosepiece with positive centring and click stop.

ü Coarse motion through rack and pinion. accurate graduated fine motion reading to .002 mm.

ü Fixed square stage120mm x120mm fitted with detachable brass graduated mechanical stage for X and Y movement upto 40mm to 75mm.

ü Two lens Abbe condenser NA 1.25 with iris diaphragm and swing out filter holder with blue filter, moveable through rack and pinion.

ü A standard plano-concave mirror 50mm dia. in fork, replaceable by a substage microscope lamp.

ü Safety stopper, prevents damage to slide and objectives.

ü Black stoving finish and hard instrumental chromium finish.

ü Complete with optics, these microscopes are packed in shockproof Styrofoam molded box inside die cut cardboard boxes with top handle having provision for placing eyepieces, objectives and dust cover.

ü All knobs Slides, motics, objectives are made up of brass material for long life

ü Warranty : 2 Years

ü Certification: ISO, CE

OPTICAL COMBINATIONS:

Eyepieces                            :  WF 10x & H15x.Achromatic Objectives :  antifungus, anti-reflection coated, parafocal objectives 10x,

                                          40x/45x(SL) & 100x Oil Imm.(SL)

Magnification Range      : 40x - 1500x

ALL KEOWA OPTICS BEARS THREE YEARS WARRANTY.

Optional Accessories:-

supplied with quadruple piece & four objective

supplied with quadruple piece & four known

MODEL

EYEPIECE

OBJECTIVE

WARRANTY

PRICE

HL-4a

WESWOX  WF 10X & 40Y H15X

 WESWOX 10x, 40x,100x

2 Years

5700/-

HL-4b

Keowa 4KW WF 10X & 40Y H15X

WESWOX 10x, 40x, & keowa 100x

3 Years

7400/-

HL-4c

Keowa 4KW WF 10X & 40Y H15X

keowa 100x

3 Years

9400/-
