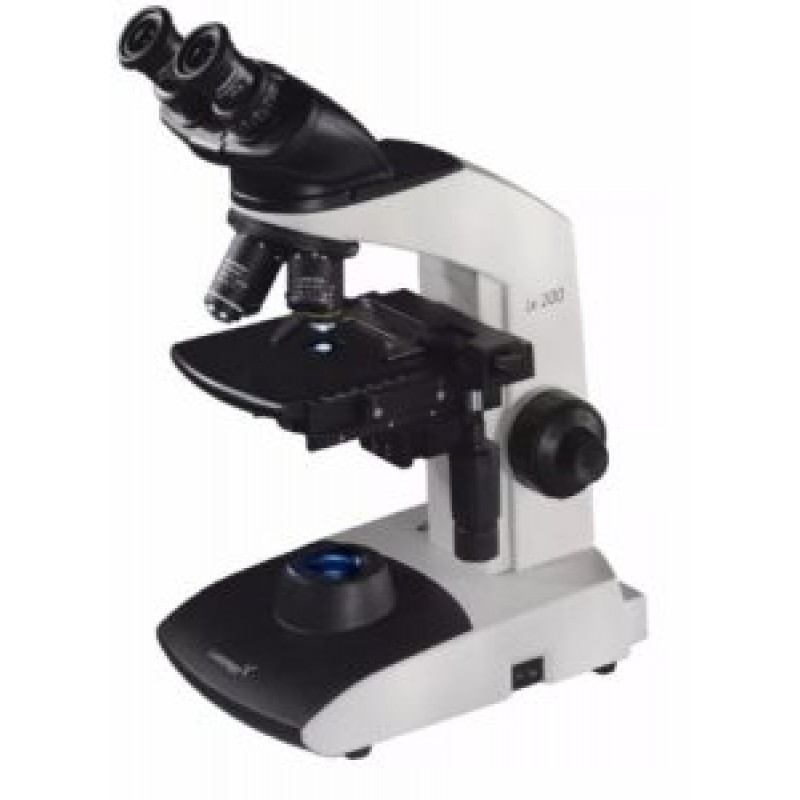

LABOMED LX 200
Product Details:
With top of the line features of a Laboratory Microscope. One Piece Die Cast Body a great feature for life long performance.
- High Grade Achromatic Objectives & WF Eyepiece Par-centered & Parfocal on CNC Machines.
- With 3W white LED on Heat Sink - Easy to Replace.
- Life more than 50,000 Hours & Back-up Battery for use when Power Supply failure.
- All moving parts on Ball Bearing Guides to give highly sensitive & smooth working.
LABOMED BINOCULAR MICROSCOPE
MODEL Lx200 LED
- Stand: Robust one piece Die Cast, with poly-carbonate hand rest for comfort during long hours of use.
- Viewing Bodies: Binocular Viewing Body 45° inclined, 360° rotatable dovetail. Interpipullary distance adjustable 54-74mm. Vacuum coated Prism for better transmission and anti fungus character.
- Eyepieces: Wide Field eyepiece WF10x/18mm both focusable with foldable eye guard.
- Objectives: DIN Semi-Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x Oil (spring loaded) anti-fungus coating. PAR-CENTERED & PARFOCAL.
- Mechanical Stage: Rectangular stage size 135 x 124mm, X/Y travel range 75mm x 50mm, Low drive movement controls, single specimen holder, with ball slides for smooth motion.
- Nosepiece: Quadruple nosepiece (Ball bearing type) with rubber grip
- Condenser: Sub-stage abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap-in frosted white filter. Rack and pinion movements on metal guide.
- Focusing: Co-axial coarse and fine focusing on ball drive system for smooth operation. Fine drive movement 0.2mm/rotation with Tension Control knob.
- Illumination: 3W LED illumination with variable illumination control. Up to 50,000 hours of LED life. Rechargeable Lithium Ion Battery Provide long Hours of Battery Backup incase of electricity failure.
- Electrical: Built inside power supply with rechargeable Battery Pack on easy replaceable plastic mount. INPUT 150V - 240V with removable power cord & ON/OFF switch & proper fuse holder.
- PACKED in Styrofoam box, with operation manual, dust cover, cleaning cloth, power cord.
