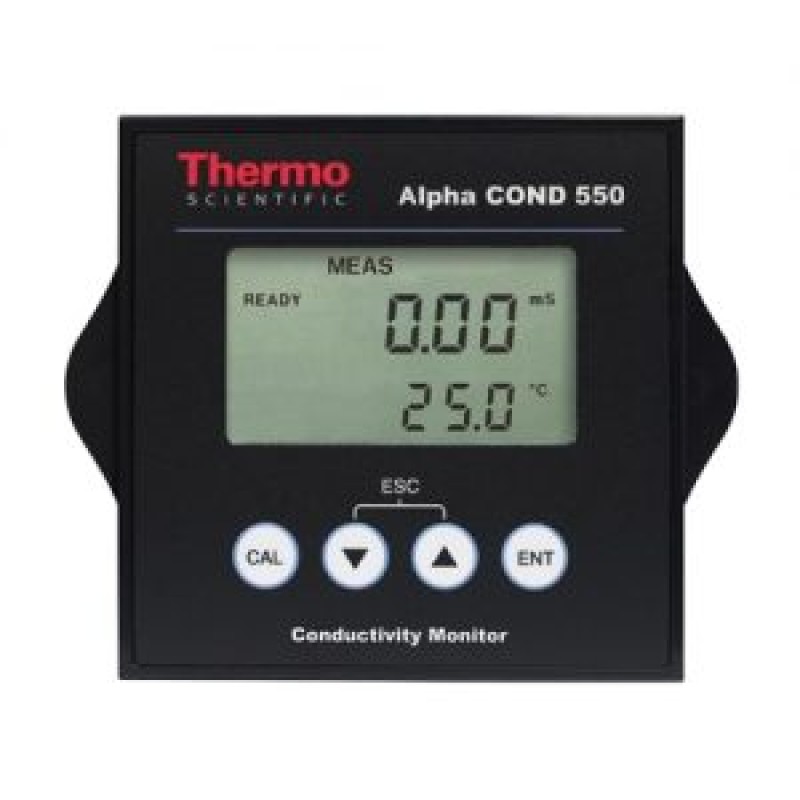

Alpha COND 550
Product Features:
- IP65 weather – proof housing
- 1/4 DIN size offers flexibility to mount on wall or in a control panel
- ±1 % accuracy across six conductivity ranges
- User-selectable range, cell-constant and temperature coefficient to suit different application needs, including pure water measurements
- Push button operation for easy set-up programming and customization
- Reliable, accurate measurements at different temperature with Automatic Temperature Compensation
Product Description :
| Product Specification | Description |
| Conductivity Range | … to 2 μS/cm ; … to 20 μS/cm ; … to 200 μS/cm ; … to 2000 μS/cm ; … to 20 mS/cm ; … to 200 mS/cm |
| Resolution | 0.001 μS/cm ; 0.01 μS/cm ; 0.1 μS/cm ; 1 mS/cm ; 0.01 mS/cm ; 0.1 mS/cm |
| Accuracy | ±1 % full scale |
| Temp.Range | -10.0 to 125.0 °C / 14.0 to 157.0 ºF |
| Resolution/Accuracy | 0.1 ºC / 0.1 ºF ; ± 0.5 ºC / ± 0.9 ºF |
| Temp. Compensation | Auto / manual |
| EMC specifications: Emitted interference | According to EN 61326 |
| EMC specifications: Immunity to interference | According to EN 61326 |
| Conductivity Input | 2-pin terminal |
| Connection terminal | 2-pin & 8-pin terminal, detachable blocks; DC jack |
| Sensor | Pt100 ; 2 or 3 wire |
| Cell constant | 0.1, 1.0, 10.0 |
| Temperature Coefficient | 0 to 10 % (selectable) |
| Normalization Temperature | 20.0 to 25.0 ºC (selectable) |
| Display | 7 segments display with symbols for status information |
| Power Requirements | 12 to 24 V DC or 9 V DC |
| Mechanical Specifications | Dimension :96 x 96 x 66 mm Weight : 210g (unit) / 310 g (packed) |
| Electrodes | On-line Cond. electrode to be ordered separately |
