DESCRIPTION:-

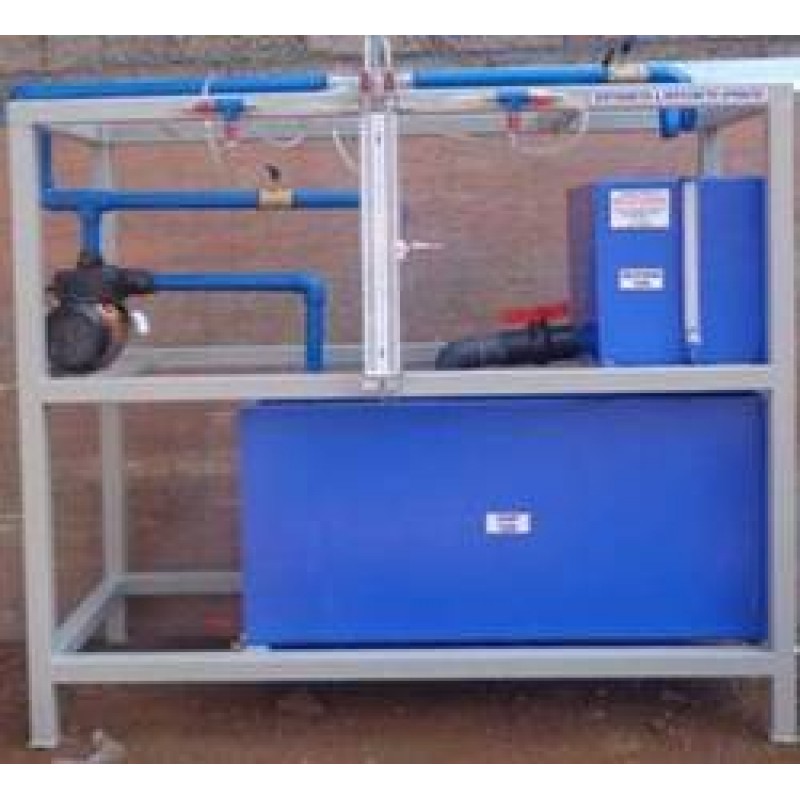

The unit consist of two pipe emerging out from common manifold along with a venturimeter & orifice meter, tapping are provided to measure pressure differences which are connected to differential manometer. A flow regulating valve is provided at the down speed stream of pipe. A measuring tank is provided to collect the flow. The actual flow rate can be measure are both meters calibrated.

FEATURES:-

• Two pipes emerging out from a common manifold with a orifice meter.

• Each line is provided with flow control valve for setting of differential flow rates.

• Pressure of different pipe lines are connected.

• Flow control valve at the end of each line assures for full running of pipe.


RANGE OF EXPERIMENTS:-

• Calibration of venturimeter.

• Calibration of orifice meter.

SPECIFICATIONS:-

•  Measuring tank & stop watch.

• Basic piping-1”

• Orificemeter & venturimeter

• Differential manometer.

• Flow control valve.

• Measuring tank – 400 x 300 x 300mm
• sump tank – 900 x 400 x400 mm.


SERVICES REQUIRED:-

• Suitable Water supply
• Suitable floor space of 1.5 m.* 2 m.
