FEATURES
- COMPACT & LIGHTWEIGHT
- SEVEN SEGMENT DISPLAY
- DIGITAL CONTROL
- EASY TO USE, KNOB & MEMBRANE KEY
- BUZZER & REAL TIME PROCESS
- 100 Hours Timer ( 6000 min)
- SHORT CIRCUIT & OVERLOAD PROTECTION
- 36 MODELS DIGITAL POWER SUPPLY.
TECHNICAL SPECIFICATIONS
Specification | BVS - 60-1.5A | BVS - 60-3A | BVS - 250-1.5A | BVS - 250-3A |
Voltage | 0 - 60 V | 0 - 60 V | 0 - 250 V | 0 - 250 V |
CURRENT | 0 - 1500 mA | 0 - 3000 mA | 0 - 1500 mA | 0 - 3000 mA |
Timer | 1min - 99hr.59m | 1min - 99hr.59m | 1min - 99hr.59m | 1min - 99hr.59m |
DISPLAY | 4 Digit - Seven Segment | 4 Digit - Seven Segment | 4 Digit - Seven Segment | 4 Digit - Seven Segment |
RESOLUTION | 1V, 1 mA, 1 min | 1V, 1 mA, 1 min | 1V, 1 mA, 1 min | 1V, 1 mA, 1 min |
OUTPUTS | 4 parallel ( 4 mm Socket) | 4 parallel ( 4 mm Socket) | 4 parallel ( 4 mm Socket) | 4 parallel ( 4 mm Socket) |
PARAMETERS | Voltage, Current, Time | Voltage, Current, Time | Voltage, Current, Time | Voltage, Current, Time |
COMPUTER CONTROL | NO (Option) | NO (Option) | NO (Option) | NO (Option) |
WORK TEMPERATURE | 0 - 40°C | 0 - 40°C | 0 - 40°C | 0 - 40°C |
RELATIVE HUMIDITY | 0 - 90%, non condensing | 0 - 90%, non condensing | 0 - 90%, non condensing | 0 - 90%, non condensing |
POWER REQUIREMENTS | 230V AC, 50/60 Hz | 230V AC, 50/60 Hz | 230V AC, 50/60 Hz | 230V AC, 50/60 Hz |
DIMENSIONS | 200 x 280 x 80 mm | 200 x 280 x 80 mm | 200 x 280 x 80 mm | 200 x 280 x 80 mm |
Fuse | 6A ( each ) | 6A ( each ) | 6A ( each ) | 6A ( each ) |
WEIGHT | 1.8 kg | 1.8 kg | 1.8 kg | 1.8 kg |
Real Time : Power Failure Auto Restart Set
Program)

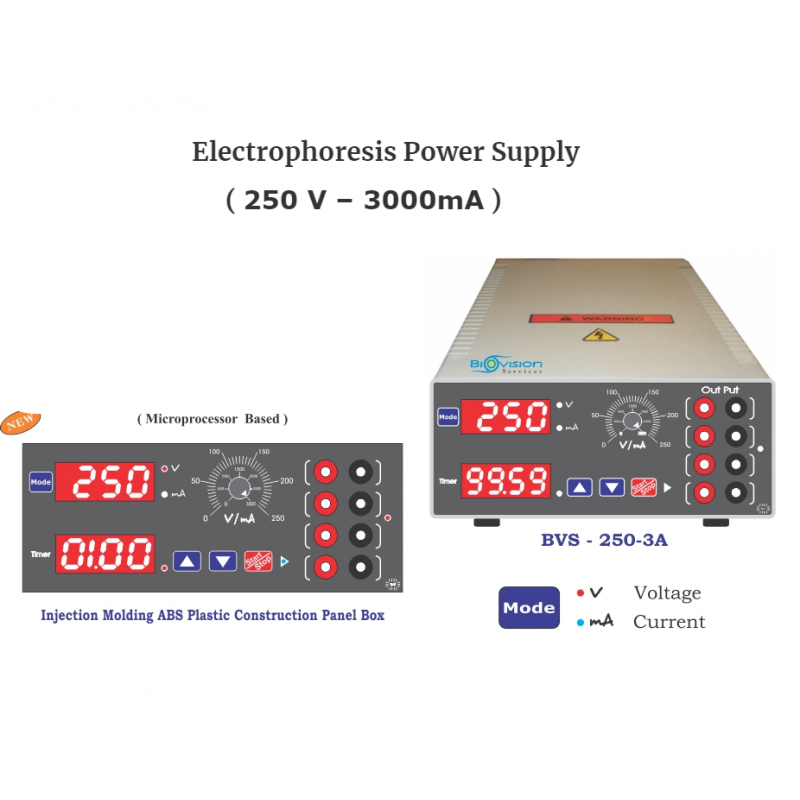

Electrophoresis Power Supply ( 250 V – 3000mA )
