FEATURES
- COMPACT & LIGHTWEIGHT
- SEVEN SEGMENT DISPLAY
- DIGITAL CONTROL
- EASY TO USE, KNOB & MEMBRANE KEY
- BUZZER & REAL TIME PROCESS
- 100 Hours Timer ( 6000 min)
- SHORT CIRCUIT & OVERLOAD PROTECTION
- 36 MODELS DIGITAL POWER SUPPLY.
TECHNICAL SPECIFICATIONS
Specification | BVS - 500-S1 | BVS - 500-S2 | BVS - 500-S4 | BVS - 500-S5 |
Voltage | 0 - 500 V | 0 - 500 V | 0 - 500 V | 0 - 500 V |
CURRENT | 0 – 100mA | 0 - 200 mA | 0 - 400 mA | 0 - 500 mA |
Timer | 1min - 99hr.59m | 1min - 99hr.59m | 1min - 99hr.59m | 1min - 99hr.59m |
DISPLAY | 4 Digit - Seven Segment | 4 Digit - Seven Segment | 4 Digit - Seven Segment | 4 Digit - Seven Segment |
RESOLUTION | 1V, 1 mA, 1 min | 1V, 1 mA, 1 min | 1V, 1 mA, 1 min | 1V, 1 mA, 1 min |
OUTPUTS | 4 parallel ( 4 mm Socket) | 4 parallel ( 4 mm Socket) | 4 parallel ( 4 mm Socket) | 4 parallel ( 4 mm Socket) |
PARAMETERS | Voltage, Current, Time | Voltage, Current, Time | Voltage, Current, Time | Voltage, Current, Time |
COMPUTER CONTROL | NO (Option) | NO (Option) | NO (Option) | NO (Option) |
WORK TEMPERATURE | 0 - 40°C | 0 - 40°C | 0 - 40°C | 0 - 40°C |
RELATIVE HUMIDITY | 0 - 90%, non condensing | 0 - 90%, non condensing | 0 - 90%, non condensing | 0 - 90%, non condensing |
POWER REQUIREMENTS | 230V AC, 50/60 Hz | 230V AC, 50/60 Hz | 230V AC, 50/60 Hz | 230V AC, 50/60 Hz |
DIMENSIONS | 200 x 280 x 80 mm | 200 x 280 x 80 mm | 200 x 280 x 80 mm | 200 x 280 x 80 mm |
Fuse | 6A ( each ) | 6A ( each ) | 6A ( each ) | 6A ( each ) |
Real Time : Power Failure Auto Restart Set Program)

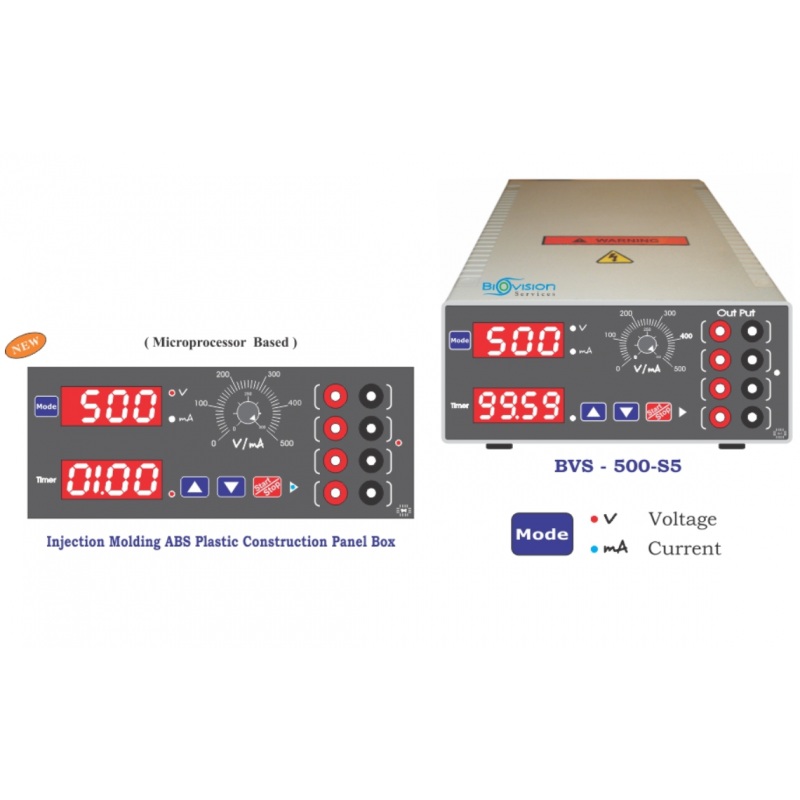

Electrophoresis Power Supply ( 4 Digit – 500v Series )
