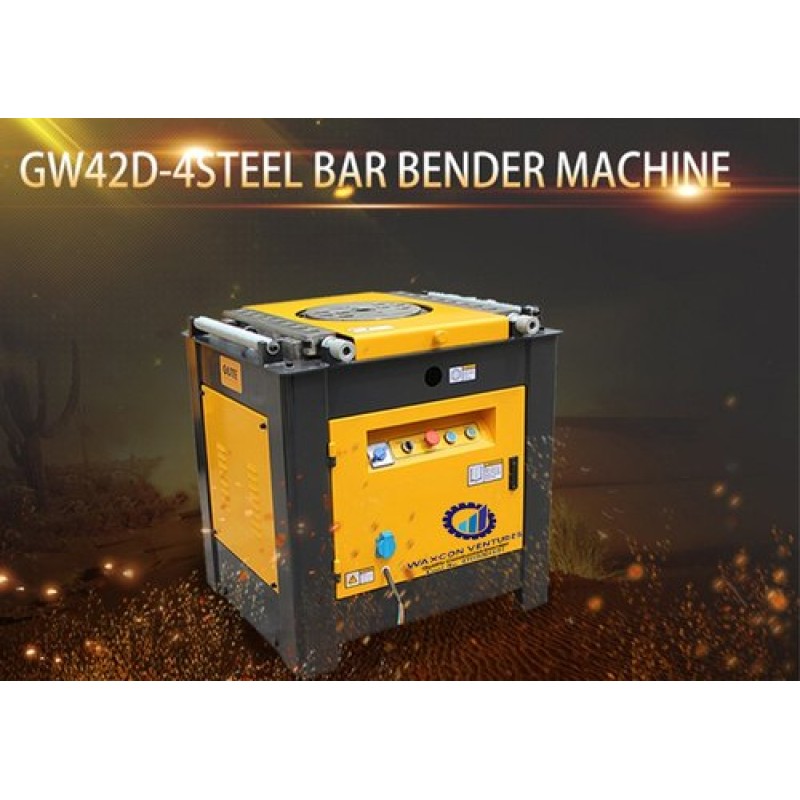

Bar Bending Machine GUTE

Bar Bending Machine GUTE

Product Details :

Bar Dimensions42 mm
Model Name/NumberGW-42D-4
Max Bending Radius6-42 mm
Max Bending Angle360
Power SourceMechanical Drive, Electric
Motor Speed1440
Machine Weight350 Kg
Bending Speed14 RPM
TMT Bar Steel Dia.42 mm
Motor Capacity3 KW


Advantage :

1.The latest heavy-duty gear box assembly, spindle is a maintenance free

2.Column and spool adopt high quality alloy steel, high temperature quenching treatment, higher hardness, more wear-resisting

3.Increase heavy of disc and square steel, Never deformation, bend bar more accurately

4.Enclosed electric cabinet, moisture proof, prevent dust, prevent leakage

5.Thickening the dashboard, increase the integrity of the machine and longer service life

6.Double-sided operation, so that people can operate in tow realizations conveniently and quickly

7.Rotary oil-way of work station make add oil more conveniently.


Model Type

GW42D-4 (automatic) YEJ 100L2-4 (Brake motor)

GW42D-1 (manual) Y100L2-4

  • POWER: 3,0 kw-4P
  • SAFETY: IP44, IP54, IP55 (dust proof)
  • EFFICIENCY: 81 %
  • CE Certificate of adequacy.
  • Both kinds of motors automatic and manual have 1 year warranty.
  • VOLTAGE OPTIONS: any voltage from 220 to 440 / 220-380 (switchable)
  • FREQUENCY OPTIONS: 50Hz / 60Hz
