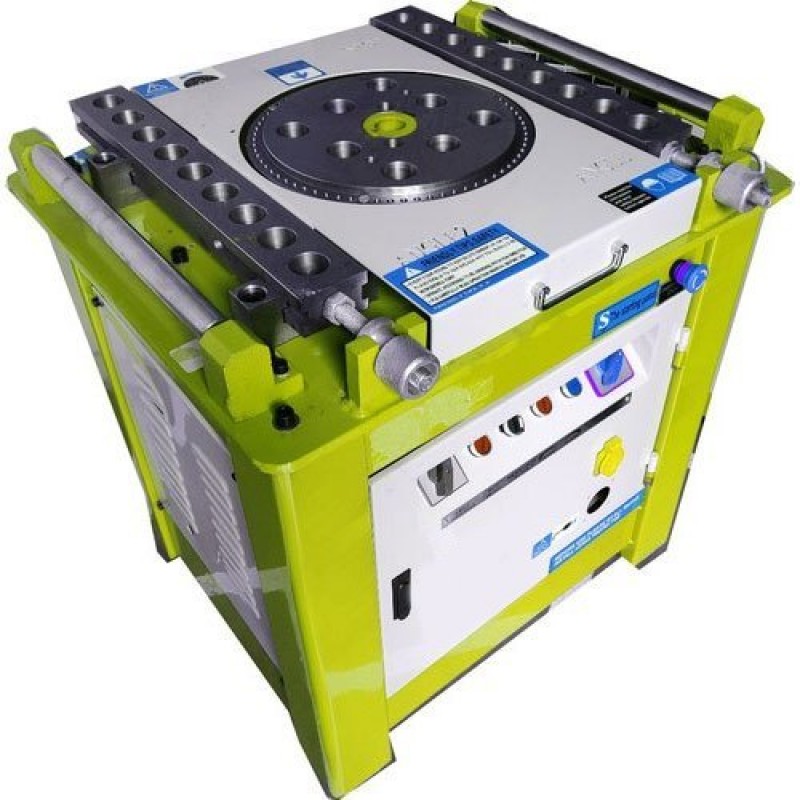

Single Phase Bar Bending Machine

Single Phase Bar Bending Machine

Bar Bending Machine

Product Details :

Model Name/NumberBV-45
Max Bending Radius0-50 mm
Max Bending Angle360 Degree
Power SourceMechanical Drive
Motor Speed1440 r/min
Machine Weight300 Kg
Bending Speed12 RPM
Motor Capacity3 HP - Crompton
Gear Oil90 No.
Bender Set07 Pcs
Voltage220
Controlling SystemContractor and Limit Switch Based with timer controlling
Frequency50 Hz
PhaseSingle
Automation GradeSemi-Automatic
Body MaterialMS
I Deal InNew Only
BrandWaxcon
Operating SystemSemi Automatic


1. Adopts the 10mm thicken top plate and high rigidity disk of iron, more durable.

2. Equipped with international standard copper motor.

3. Equipped with ultra-high hardness accessory and adjustable fender.

4. Equipped with stop switch, the machine can stop immediately, ensure the safety of the workers.

5. Adopt 16mm thick top plate, high rigidity disk, adjustable stylobate, the bending angle of more efficient.

6. Equipped with international standard copper wire brake motor, narrowing inertance when the machine stops and bending angle is more accurate.

7. Pin-type positioning disk, it can adjust angle from 0-360 degree, more easily and convenient.



Application :

The rebar bender steel bar bending machine is suitable for various of geometric shapes that are required for the processing of various ordinary carbon steel and rebar in construction engineering.
