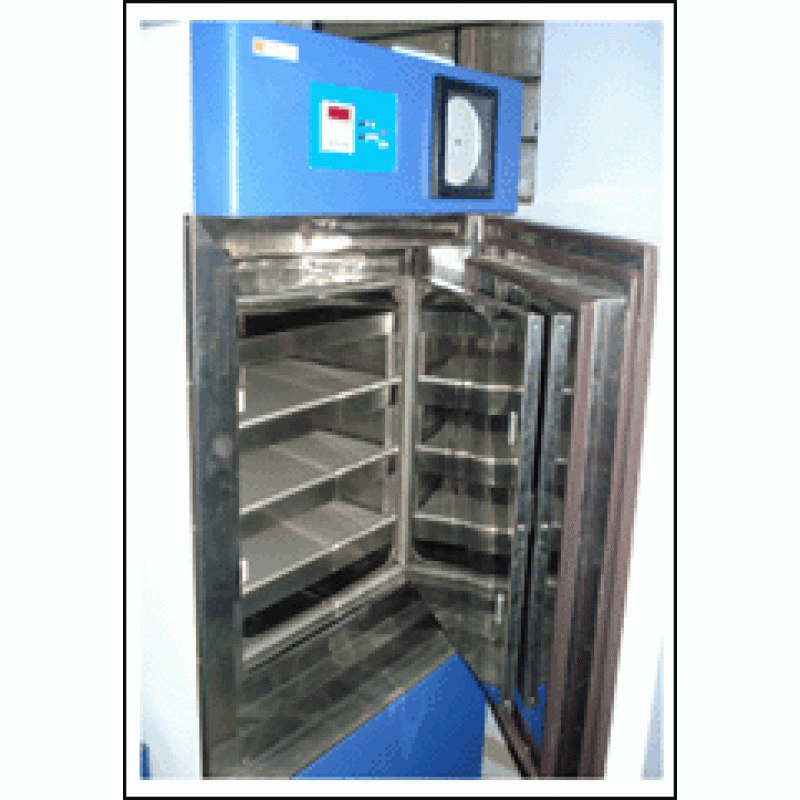

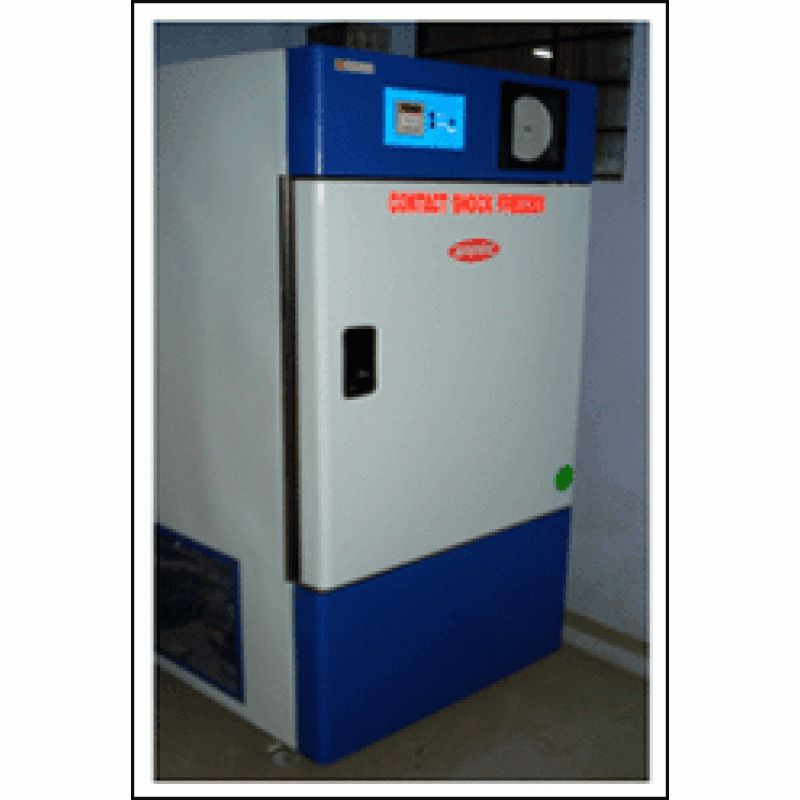

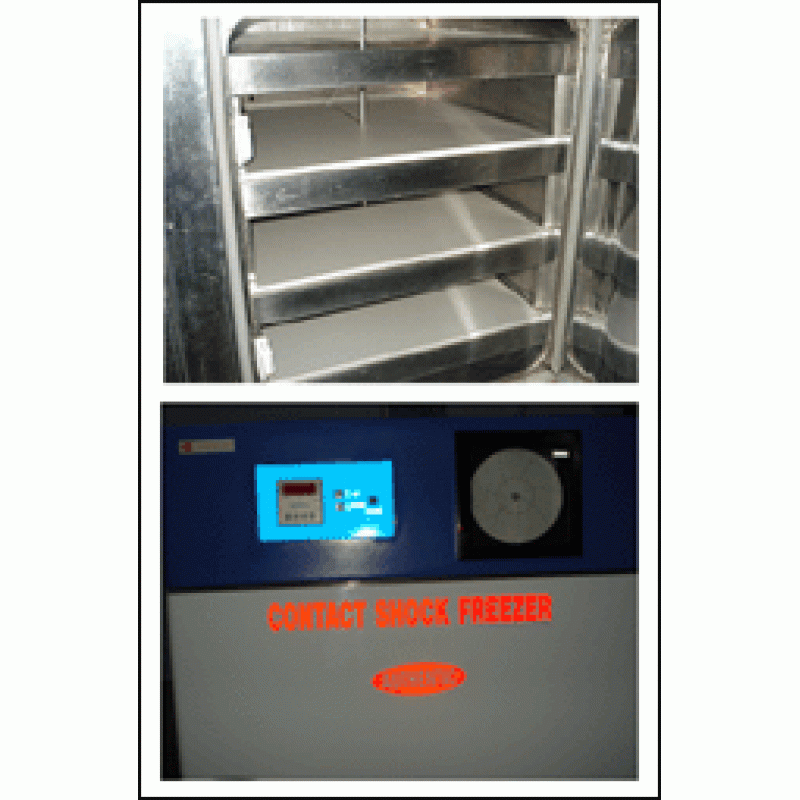

Contact Shock Freezer
Technical Specifications :
- Inner SS & Outer MS Deco Paint
- Working Temperature -750C to -800C,
- Shelves 3 Nos ,
- Working Capacity : 24 Plasma Bags in 45 Minutes,
- Rapid freezing to core temperature -300C,
- Automated freezing process inclusive documentation ,
- Simple and intuitive operation,
- Evenly shaped bags for optimum utilization of storage options,
- Improved mechanical further processing in automated systems,
- Shock freezing of several batches in succession with optimized cooling systems & TOUCH SCREEN
- size:– 6-inch (without intermediate defrosting),
- State –of –the –art compressor technology with optimized cooling systems,
- Air cooled condenser (MBF 12, MBF 21) or optional water cooling (MBF 21 WK),
- Air- cooled condenser and compressor as external unit or optional water cooling,
- Refrigerant free from CFC and HCFC,
- Separate refrigeration of the fixed cover plate and and the Electrically adjustable working surface
- Separate refrigeration of the electrically adjustable cover plate and the fixed working surface of the upper tables,
- As well as separate refrigeration of the fixed Cover plate and the electrically adjustable working surface refrigeration of the lower table,
- Quick and easy loading / removal of preparations ,
- Ergonomic design,
- The preset and recommended operating temperature (set point) of -500 C minimizes the risk of bags rupturing,
- Mobility by means of smooth castors with stabilized,
- High –grade stainless steel housing ,
- Compact, service – and maintenance –friendly construction,
- Trouble –free cleaning and disinfection ,
- Lower surface area and lower area load requirements.
