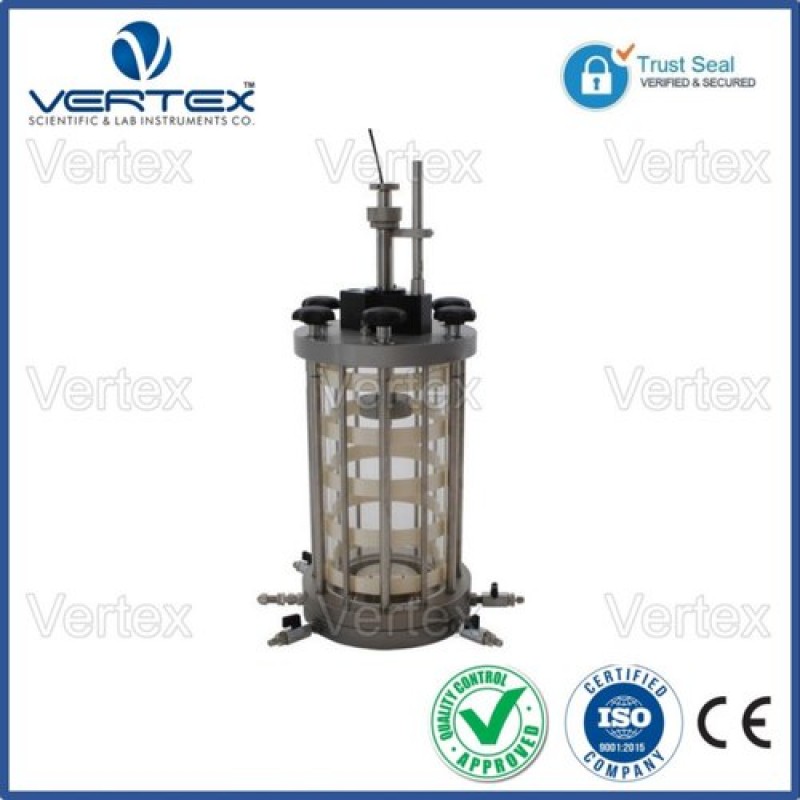

Triaxial Cell
Product Details :
Material | Plastic,Glass,Steel |
Brand | Vertex |
Specimen Diameter | 38mm |
Leak proof upto | 10kg/cm.sq |
Thickness | 6mm |
Tube Material | Plastic |
Confining pressure | 0-600kPa |
About Product :
- The cell is useful for testing 38mm dia x 76mm high soil specimen. Transparent Perspex chamber with anvil and loading plunger, the cell is easily opened by releasing four nuts of the tie rods. It is leak proof up to 10kg/cm.sq. Fluid pressure. An oil plug which can also be used as an air vent is provided for introducing a thin layer of oil over water. This provides effective sealing at the plunger for long duration tests. The cell is fitted with four sleeve packed valves of no volume change type on the base. These valves are used for cell pressure, pore water pressure, drainage or back pressure. The loading plunger of the cell has dial gauge rest.
Specification :
- Make : Vertex
- Material : Plastic , Glass , Steel
- Leakproof upto : 10kg/cm.sq
- Specimen Diameter : 38mm
- Confining Pressure : 0-600kPa
- Sear Speed : 0.0016x4mm/min
- Sheath stretcher : 38mm dia
- Thickness : 6 mm
- Tube Material : Plastic
- Minimum Order Quantity : 01 Piece
Other Details :
- Model Number : VSLIC3057
- Standard : IS 2720 (Part XII)
Additional Information:
- Item Code: VSLIC3057
- Delivery Time: 1 Week or Depend on the Distance
