Laboratory Conductivity Meter can measure Conductivity, Resistivity, Total Dissolved Solids(TDS), Salinity & Temperature of any solution. This instrument is suitable in the field of water quality monitoring, aqua culture, biological agriculture, scientific & educational research, food safety, petrochemical and environmental protection. It uses ECNG01 glass electrode with a platinum plate sensitive element coated with platinum black to avoid errors due to polarization especially in solutions of high conductivity.
FEATURES
- Conductivity, resistivity, total dissolved solids(TDS),salinity & temperature measurement.
- Automatic or manual temperature compensation
- 1 point calibration for the entire range.
- Bi directional RS232 interface. Baud rate selectable from 1200, 2400, 4800 and 9600.
- Single and continuous print out of readings.
- Multiple Printout types. Combinations selectable from different measuring units.
- Real Time Clock. Calibration report as per GLP requirements.
- Memory storage of 100 measurements.
- Data logging facility up to 500 results. Data logging interval selectable from 5S, 10S, 20S, 30S, 1M, 2M and 5M.
- Temperature calibration with respect to solution of known temperature.
SPECIFICATIONS
Measurement Range
- Conductivity : 0~200mS/cm spread into
- 5 ranges 0.00~20.00μS/cm, 20.0~200.0 μS/cm,
- 200~2000 μS/cm, 2.00~20.00mS/cm,
- 20.0~200.0 mS/cm,
- Resistivity : 0~100MΩcm
- TDS : 0~100ppt(g/L)
- Salinity : 0~100ppt
- Temperature : -10.0 ~ 110.0oC
Precision
- Conductivity : +1% FS
- Temperature : +0.4oC
ATC : 0~50oC
Display : Backlite LCD
Power : 9V/ 500 mA External adaptor or battery backup unit (Optional)
Operating Temperature : 15~45oC
Meter Dimensions(mm) : 165 (L) x 190 (D) x 60 (H)
Meter Weight : 700 g

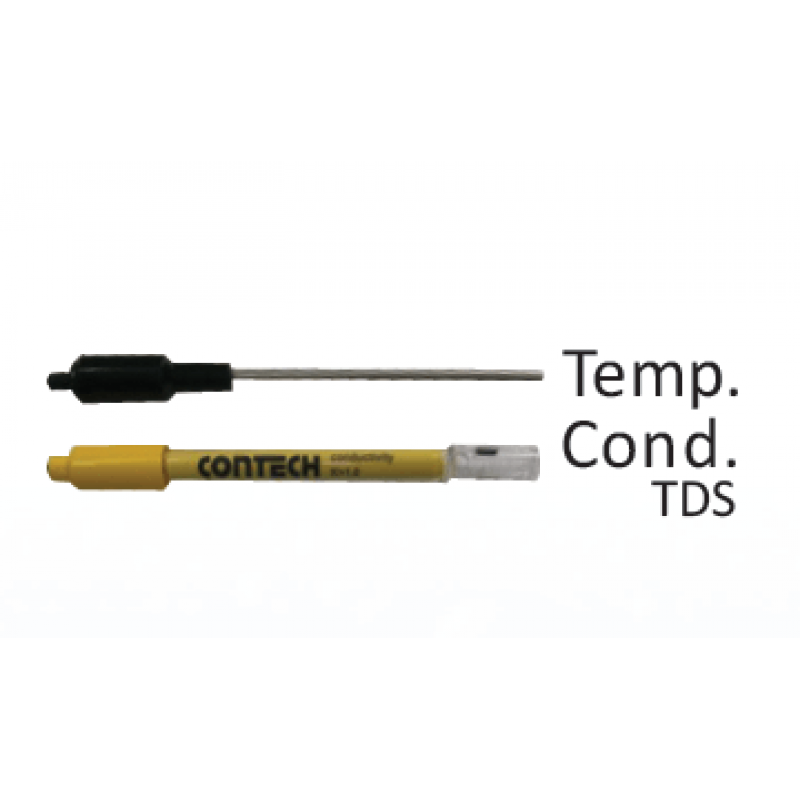

Electrode : Conductivity electrode - ECNG01
Temperature sensor electrode- ETS01
Power : 9V/ 500 mA External adaptor
Operating Temperature : 15~45oC
Meter Dimensions (mm) : 165 (L) x 190 (D) x 60 (H)
Meter Weight : 700 g
Optional Accessories
- Magnetic Stirrer MS-01,
- Battery backup unit BBEC-01
- Calibration Standards
