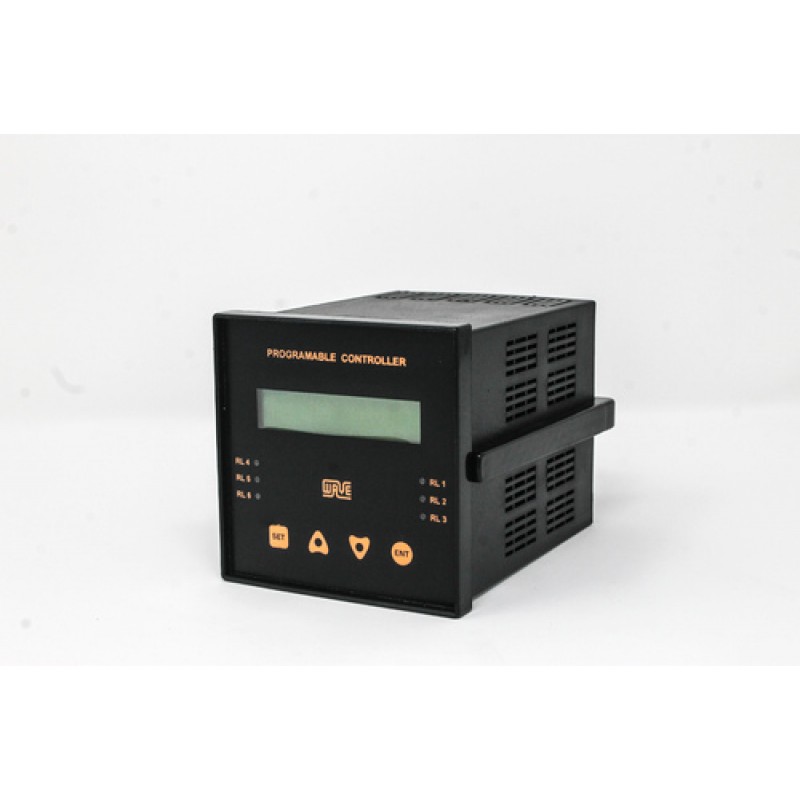

PLC controller with 5 Relay O/P, 2-I/P & 15 timers
Product Details :
Display Type | 16*2 LCD |
Material | polycarbonate |
Brand | wave |
Power | 220 V AC |
Usage/Application | Multiple I/O timer |
No Of Inputs | 2 input/5 output |
Size | Size 48(w)x48(h)x85(d)mm (Model - DPM-2301-AHT)Size 72(w)x72(h)x110(d)mm (Model - DPM-2101-AHT)Size |
- Size 96(w)x96(h)x85(d)mm (Model - WTM-1602-2I-5O-15T)
- Microcontroller based
- 16x2 LCD with sequence, Step, Time & status indication
- Supply 220 VAC
- Size 96x96x110mm
- Five Relay contact potential free C-NO output with led indication
- One System ready input (Maintain contact = Sequence On)
- One Start/Stop push to on / push to off input
- Unit (Minute or Second) selectable for all timer
- Resolution 1 or 0.1 selectable for all timer
- Power Down memory selection
- Sequence or Cycle of relay function selectable.
- Relay 1 to 5 (On or Off) function for each timer selectable
- Give name or rename to each timer configurable from default name list.
Additional Information:
- Item Code: WTM-1602--2I-5O-15T
