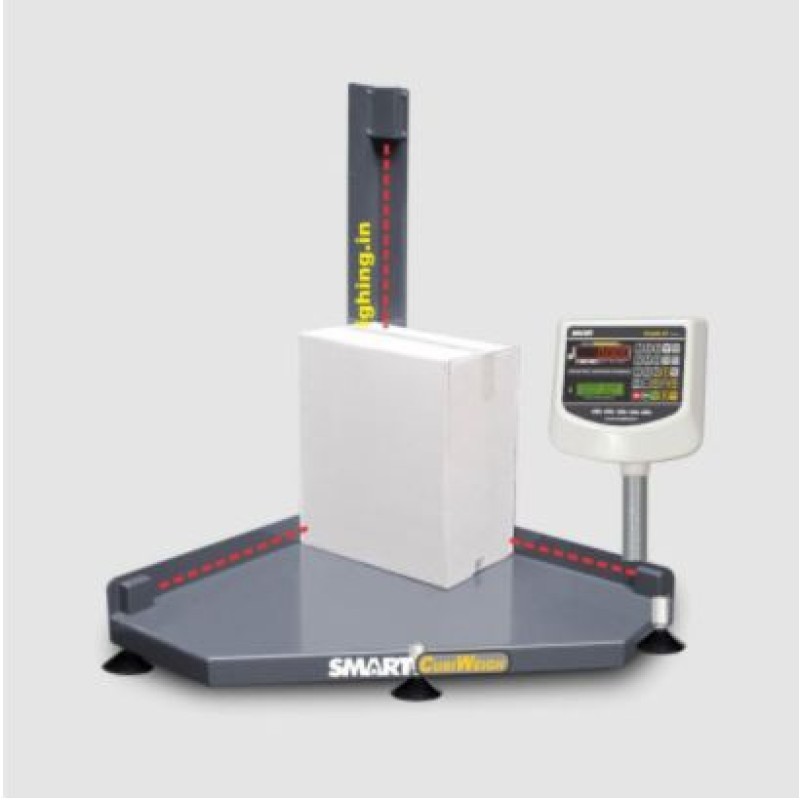

Cubi Weighing System

The Cubi Weighing System, an integrated cubing and weighing system, gives you total control in any distribution center or warehouse application. This scale gives you the benefits of collecting package information (weight and size), quickly removing any human calculation error, eliminating re-entering of data, or any sort of data corruption. This information can be easily transferred to data processing system where it can be used immediately. This data is certified and is more reliable than any manual measurements.

Description

Features / Application / Benefits

• Dimensional /Weight, data for calculating shipping charges
• Allows for quick package processing for added throughput
• Interfaces to computer-based manifesting systems
• User-definable “dim factors” / CBM factor
• Report : Manifest Report, Consignment Reports, Summery
• Optional for label printer to print custom labels
• Real-time or batch-mode data transfer to host system
• Mobile trolley system for portability in your warehouse
• Barcode Scanner Interface to Scan Docket/Article Nos.
• Built In real time clock supported by battery backup
• ERP integration with SAP / Oracle / SQL via ODBC along other databases and web based apps
• Quick, non-contact dimensional detection of packages
• Base Frame made of Powder-coated steel
• Low construction height for easy application of the packets
• Capacity : 30kg, 50kg and 100kg
• Reliable weighing by laser-welded load cells
• High accuracy laser distance sensors with laser class 1
• Height adjustable feet allow leveling of the system
• Easy integration with ERP and shipping systems
• Direct connection to PC via RS-232 or USB interface
• Option for Battery backup to allow portability

Specifications :

Cubiweigh 450 Kit

• Dimensional capacity 450mm(L) x 450mm(W) x 500mm(H)
• Weight capacity 20-30kg
• Well suited for condensed work areas
• Ideal for courier collection centers, dispatch areas
• Height measurement can be customized for user requirement

Cubiweigh 550 Kit

• Dimensional capacity 550mm(L) x 550mm(W) x  550mm(H)
• Weight capacity 30-50kg
• Best overall range for varying tasks, Ideal for courier collection centers, medium dispatch areas
• Height measurement can be customized for user requirement

Cubiweigh 750 Kit

• Dimensional capacity 750mm(L) x 750mm(W) x 750mm(H)
• Weight  capacity 50-100kg
• Ideal for hubs and very large dispatch areas
• Option for integration into conveyor system for stationary measurement of boxed goods.

Options

• Customized Software
• Label Printer
• ODBC Database Connector
• Barcode Scanner
• Ethernet LAN
• Trolley for Portability
