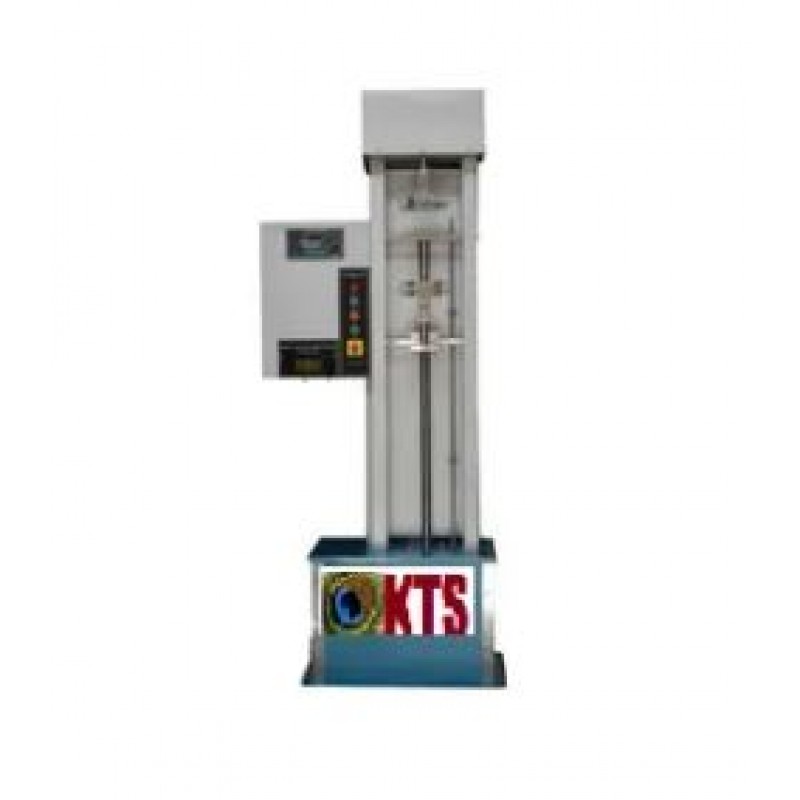

Digital Lea Strength Tester
Product Description
Digital Lea Strength Tester -ITEM CODE: KTS-053
Capacity: 500kg L.C. 20g
To determine the Single / double yarn strength of any type of Yarn. Elongation can also be measured on display panel. Maximum capacity 500Kg with 20gms accuracy, works on CRE principle. Digital control panel with digital extension meter. Maximum jaw separation 450mm & minimum jaw separation 25mm. The controller is microprocessor based and has the facility of over load protection, peak hold and auto calibration. The load directly indicated in kilograms or Newton. Complete with all accessories including jaws.
Tech. Details:
- Capacity of the Tester: 0 - 500 Kg. Sensitivity: 20gms.
- Speed of Machine: 75 mm / Minutes 300 mm / Minutes
- Minimum jaw separation: 100 mm
- Maximum jaw separation: 850 mm
- Motor: ½ HP, Single Phase, 230 + 10% AC Supply.
- Load measurement: Digital display indicates the max. Load exerted on the load exerted on the load cell during the test with peak value& zero setting switch.
- Movement Controls: Push switch for LOAD, UNLOAD and STOP Function.
- Over Load Protection: Micro switches for over-travel protection.
- Related Standards: ASTM D2256, BS 1932
