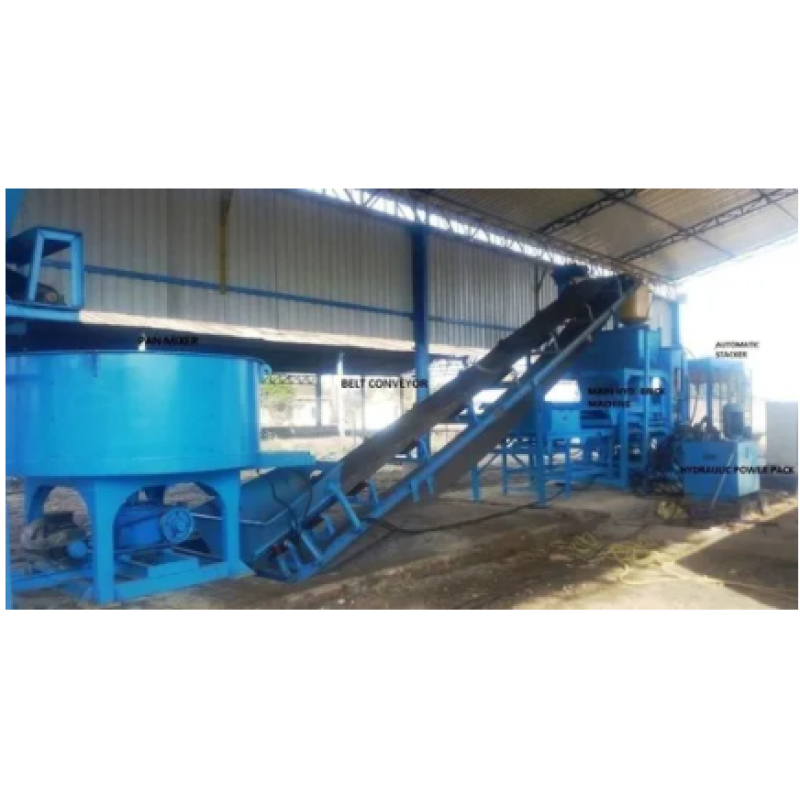

FLY ASH BRICK PLANT RBM-12

Product Details :

• General Use BRICK PLANT
• Automatic Yes
• Voltage 240 Volt (v)
• Color Blue
• Warranty Yes
• Supply Ability : 1 Per Month

Product Description :

FLY ASH/CONCRETE  BRICK/PAVER  MAKING VIBRO-HYDRAULIC PRESS - FULLY AUTOMATIC MACHINE (RBM-12)

Electric Motor 10 HP 3PH Crompton / Havells / Kirloskar With Power Pack (Pump of Poly Hydran/Boss &Valve of Yuken/ Poly Hydran . Electric Panel (With Mitsubishi PLC,) Limit Switch/Proximity Sensors, Hopper, Oil Tank Capacity 300 Lit. Cylinder Made by Honed Tube. Piston Is Hard Chrome. Production Capacity 12,000 to 15000 Bricks/Shif.

PAN MIXTURE :

1 No. “Reva” Pan Mixer having capacity of 600 Kgs. fitted with 2 Nos. heavy C.I.Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge  blades,having special alloy steel tips,complete with quality Worm Reduction Gear Box of Elecon/Roto-Reva powered by 15 H.P./Electric Motor of Kirloskar/Crompton/Havells make With starter.

CONVEYOR :

1 No. “Reva” Belt Conveyor for loading and unloading the material of the Pan Mixer , and powered by 3 H.P. Electric Motor of Havells/ABB/BBL/Siemens  make fitted with quality gear box with starter. The conveyor is fitted with rubber top nylon conveyor belt and is moving on frictionless idlers.

MOULD :

 (10 Cavity) Ten Bricks per Stroke with frog ( Name in the Brick).  Pallet size : 28” x 24”.

Pallet Trolleys :

• 2 Nos. “Reva” Pallet Trucks are fitted with Pneumatic Tyres, and manual dragging arrangement with lift capacity of 1000 Kgs.
• Finished Bricks conveying Conveyor with 0.5 H.P. Geared Motor Driven.
