Smart Gas Transmitters Using Swappable Sensor Modules:

Description Of Smart Gas Transmitter :

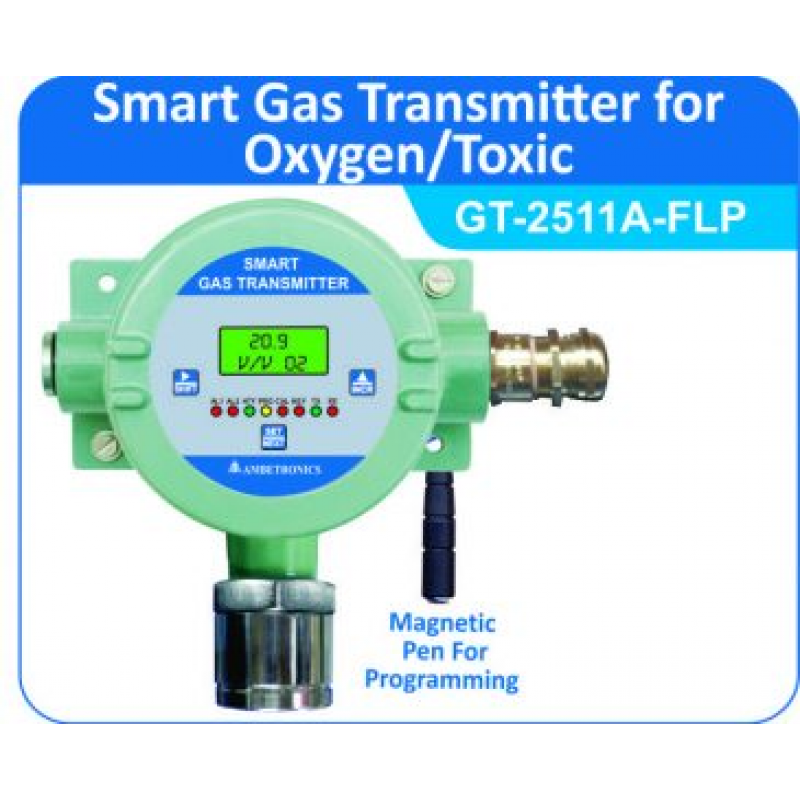

The GT-2511A-FLP  series is the latest upgraded Smart Gas Transmitter which is microprocessor based with an easy to read backlit LCD display. The transmitter provides an RS-485 digital output as well as the industry standard analog 4-20 mA output.

The transmitter utilizes smart sensor technology, using Swappable Sensor Modules, where all of the sensor information & its calibration is stored in Sensor Module which can be easily maintained & serviced. It comes in a CMRI tested flameproof enclosure.

Salient Features Of Smart Gas Transmitter:-

• Provides a fast  and reliable output by using Electro  Chemical  Sensor Technology.
• Optimized for detection of smallest leak of Oxygen, Toxic Gases.
• Provision for Smart-swappable gas sensor; which are available for Oxygen & Toxic Gases for easy maintenance & servicing.
• Highly resistant to poisoning and etching.
• Capable of detecting down to PPM, %V/V.
• Digital display of Gas Concentration on LCD Display
• Indication for ‘Sensor Open’, ‘Over Range’, ‘Replace Sensor’ Indication.
• Sensor Check Provision.
• Standard 4-20 mA signal output with configurable range.
• Easy handling and programming with 3 keys for Weatherproof Models.
• Non-Intrusive programming for Flameproof Model using Magnetic Pen.
• Password protected programming with Password Changing Facility.
• One man Auto Software Gas Calibration.
• Optional Alarm Relay contacts on board with two configurable Alarm levels & one Relay for Fail Safe Relay.
• Alarm Acknowledgement Facility from front as well as rear terminal.
• Self testing of Alarm LEDs, Relays, 4-20 mA Output.
• ‘Test Mode’ provided to check the electronics without sensor.
• Optional STEL and TWA set points can be configured for Toxic Gases.
• Optional RS-485 Communication Port with MODBUS RTU Protocol.

Applications Of Smart Gas Transmitter:-

• Acid Alkalizes & Dyes Mfg. Plants
• Ambient Monitoring
• Automotive Industries / Paint Shops
• Bullet Yard / Storage Yard
• Burner / Furnace Areas
• Chemical & Petrochemical Plants
• Chemical Processing Plant
• Chemical Storage Area
• Chlorination Plant
• Coal Mine and Confined Area
• Cold Storage
• Control Atmosphere
• Fertilizers Plants
• Gas Cylinder Bank
• Gas Metering skid
• Gas Metering Station
• Gas Pipeline Project
• Heat Treatment Plants
• Offshore Drilling & Processing Platforms
• Oil & Gas Industries
• Power & Industrial Plants
• Pulp & Paper Plants
• Refineries
• Sewage Plants
• Stack Monitoring
