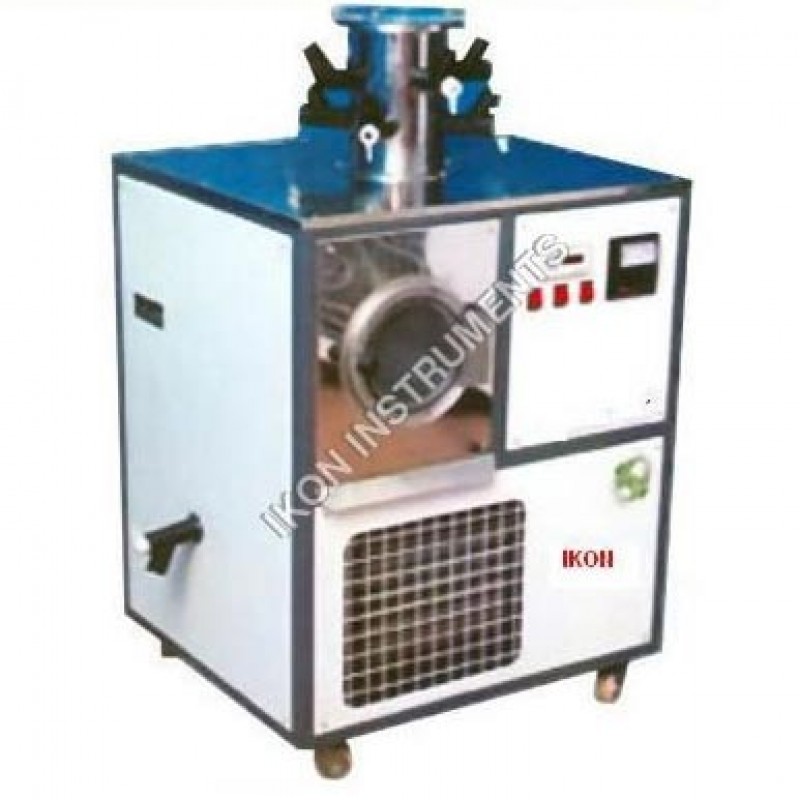

Our company is a well-known Manufacturer and Supplier of Lyophilizer (HSW148)
from Gujarat. The Lyophilizers we make available are manufactured in
compliance with set industrial norms. Strict quality-tests ensure that
only defect-free Lyophilizers reach the buyers. We are capable of
delivering bulk orders of the Lyophilizer within promised time frame.
Highlights :
- Freeze Drying is the process of removing the moisture from a biological product while maintaining the integrity of the products biological & chemical structure and activities
- Freeze drying technology is used in particular for removal of moisture from the products usually of biological origin without causing any noticeable change in the original characteristics
- Freeze drying is also the preferred process in the field of Pharmacy, Chemistry and in Conservation of food
- Lyophilization System's Freeze Dry Equipment is a new generation laboratory research freeze dryer designed with the same parameters as industrial sized machines
- A rectangular chamber offers compact profile with either bulk or bottom-up hydraulic tapering configuration
- Both options have a radiant heat plate above the top shelf for uniform drying on all shelves
- All internal surfaces are constructed of 316L stainless Steel and offer a polish of 20 Ra or better
- A remote coil condenser is located between the product and the vacuum pump providing maximum condensing surface area and vacuum pump protection
- A 4" Vapor port connects the chambers. A butterfly isolation valve can be added for end of drying testing
- Hot gas is used for defrosting the condenser when drying is complete. Fluid filled hollow shelves with a serpentine fluid path provide the most uniform shelf temperature possible, results in consistent and repeatable drying
- All units come with one product tray per shelf; either a removable bottom or bulk
System Performance :
- Shelf Pull down Form + 20 to - 40C in less than 30 Minutes
- Temperature resolution 0.1C
- Vacuum pull down to 100mT in less than 15 Minutes
- Vacuum Leak rate less than 30mT per hour
- Maximum vacuum level 5mT in clean dry system
