3 Phase Energy Meter
Product Details :

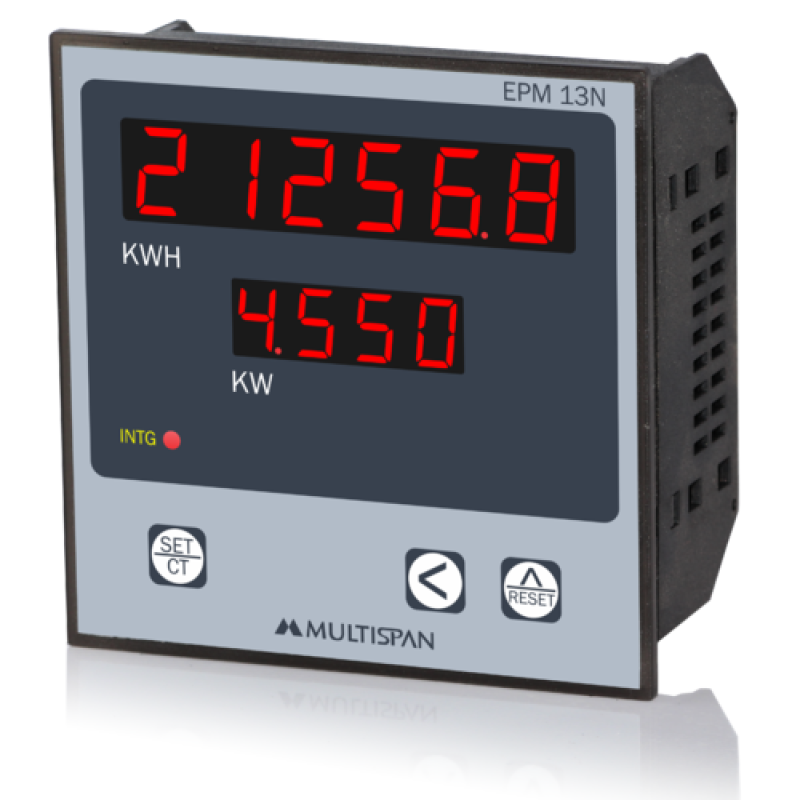

MODEL Dimension (HxWxD) mm Panel Cutout (mm) | EPM-13N 96 X 96 X 50 92 x 92 | EM-13N 96 X 96 X 50 92 X 92 |
Display INPUT | Upper: 7 Segment, 4 digt, 0.56' RED LED display - kW Lower: 7 Segment, 6 digit, 0.36' RED LED display - kWh | Upper: 6 digit, 0.3' RED LCD display - kWh Lower: 7 Segment, 4 digit, 0.56' RED LED display - CT Selection |
Input Signal Voltage & Current CT selection Primary CT selection Secondary | 30 4wire 30 4wire : 230V AC & 5A 5 - 2500A 5A | 30 4wire 30 4wire : 230V AC & 5A 5 - 2000A 5A |
Reset Facility Measuring range Phase Indication | By Front Keypad 0.000 - 9999 kW (active power) 0 - 999999 kWh (active energy) | Reset key at back 0 - 99999.9 kWh Reverse phase, 3 phase & auxilary supply indication |
Accuracy Power supply | Class 1.0 230 V AC ±10%, 50 Hz | |
Enclosure Material Operating Ambient Temp Relative Humidity | Plastic 0°C - 55°C Upto 95% RH Non Condensing | |
NOTE: | To see CT Ratio Press CT Key in EM-13M |
