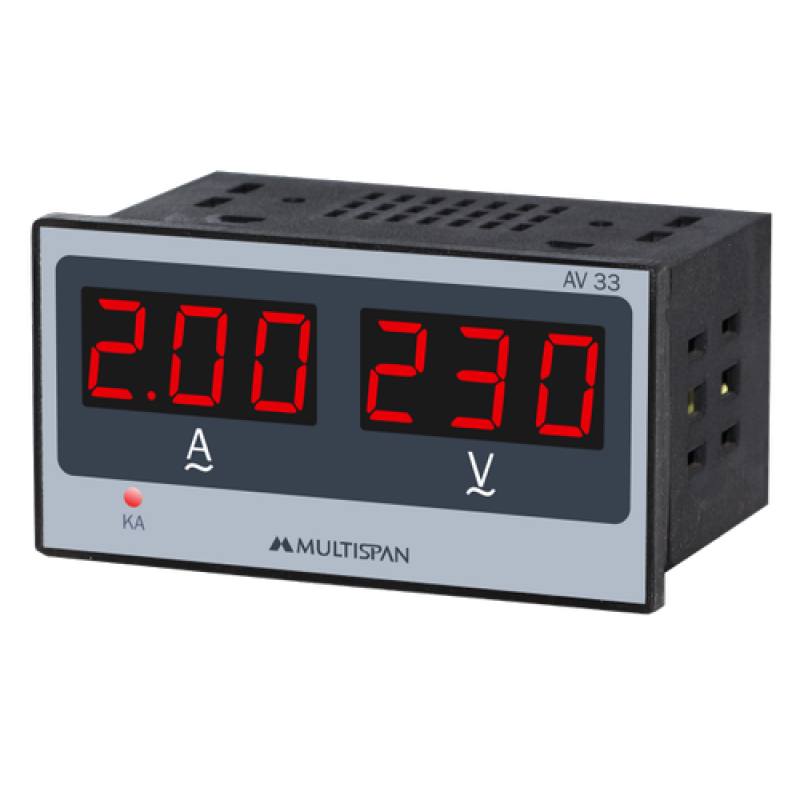

Single Phase Panel Meter-Volt / Amp Meter
Product Details :
MODEL Dimension (HxWxD) mm Panel Cutout (mm) | AV-33 48X96X67 44X92 | AV-38 48X96X75 44X92 |
Display | Single : Volt - 7 segment, 3 digit, 0.56", RED LED display. Current - 7 segment, 3 digit, 0.56", RED LED display. | Single : 7 segment, 4 digit, 0.8", RED LED display. |
PARAME !ERS Voltage(AC) Ampere(AC) TrririrnTiniM | 0-500V AC CT selection by key & CT ratio: 5/5~ 2000/5 Amp AC (Configurable) | 0-500V AC CT selection by key & CT ratio: 5/5~ 975/5 Amp AC (Configurable) |
Accuracy Power supply Indication | Class 1.0 230V AC ±10%, 50 Hz KA Indication | |
Enclosure Material Operating Ambient Temp Relative Humidity | Plastic 0°C - 55°C Upto 95% RH Non Condensing | |
NOTE: | In Model AV-33 direct 30A AC is also available on Customer Request | |
Single Phase Panel Meter-Volt / Amp Meter
- Views: 344
-
Multispan Control Instruments Private Limited - Product Code: AV-33
- Availability: In Stock
- ₹0
